Article No. 7740
SPORTFIX Sand traps
Sand trap 2 x 500 mm
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

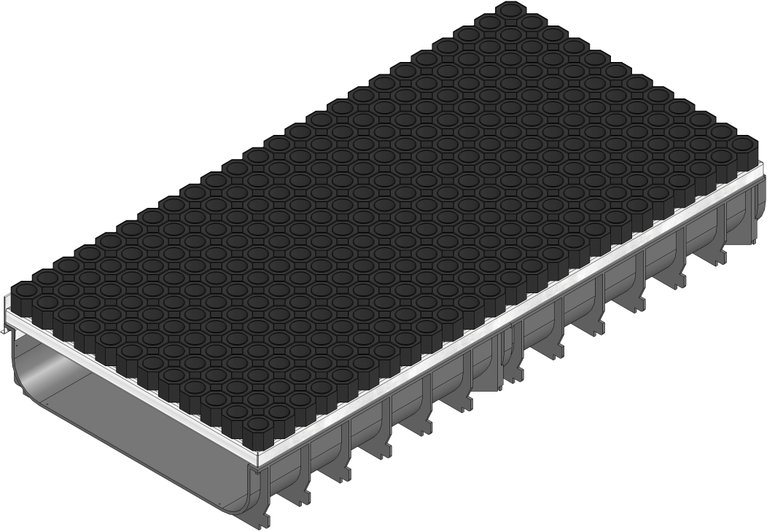

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7740
Length
1000 mm
Width
500 mm
Height
178 mm
Weight
19.81 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
460
Internal channel cross-section
445 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
hot-dip galvanised steel
Regulations
EN 1433
Sales text
SPORTFIX sand trap channel with mesh grating MW 30/30, galvanised and securely fixed rubber mat, 1 m
Product description
SPORTFIX Sand trap channel made of modified PP, black, pre-shaped connection possibility DN/OD 110, with metal profile on one side for easy installation of running track, with mesh grating MW 30/30 galvanised, with safely fixed rubber mat, walkable, L/W/H 1000 (2x500)x500x163 mm, item no. 7740
Packaging unit
-
Tender Texts
Installation example
running track / sand pit class A 15
running track / sand pit class A 15
