Article No. 48055
sump unit
for NW 100, with silt bucket made of recycled PP, with slotted grating SW 80/9 mm, galvanised, trafficable, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

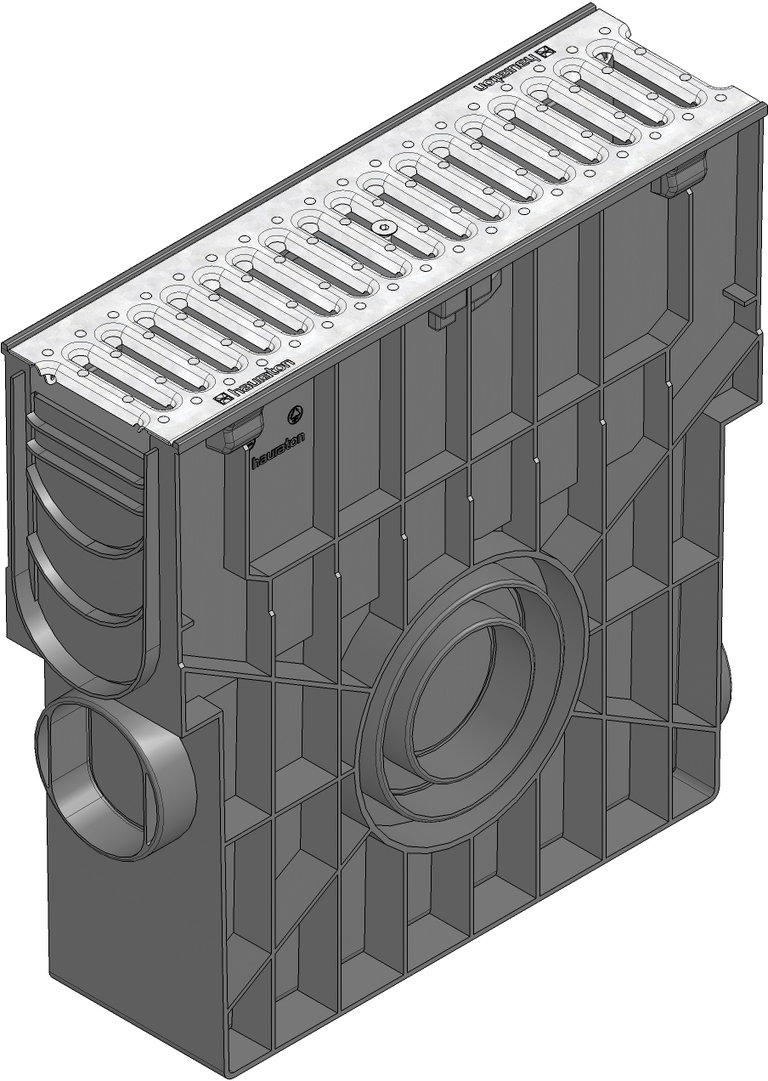

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48055
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
3 mm
Weight
5.20 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with slotted grating SW 80/9 mm, galvanised, trafficable, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100 , 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX STANDARD 100, with slotted grating SW 80/9 mm, made of galvanised steel, overlying, trafficable, with locking, LxWxH 500x150x488 mm, item no. 48055
Packaging unit
28
