Article No. 33210
Trash boxes
for NW 150, for type 110 / 150 / 200 and type 01 - 010, with edge frames made of galvanised steel and silt bucket made of recycled PP, with KG socket DN/OD 160, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

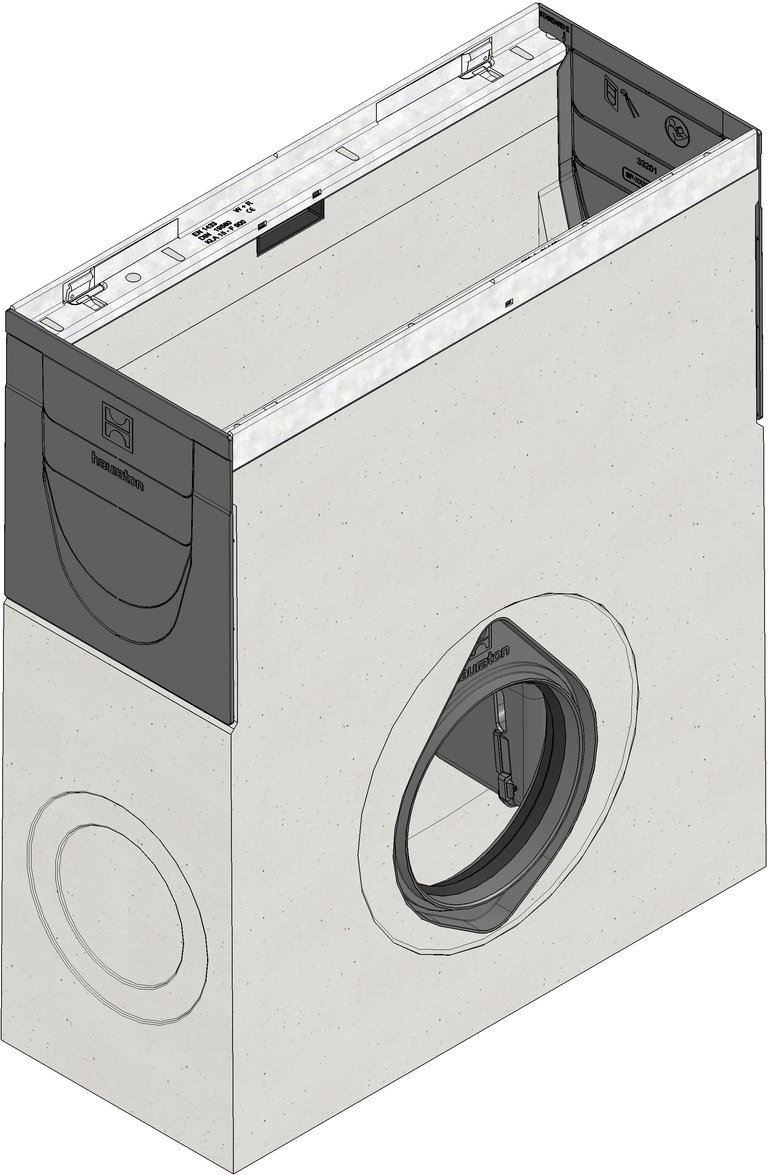

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33210
Length
500 mm
Width
210 mm
Height
603 mm
Weight
66.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
150
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 110/150/200 as well as for type 01 - 010, FASERFIX KS 150, 0.
Product description
FASERFIX KS 150 type 010 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, on front sides connection possibility DN/OD 110 and DN/OD 160 and on the side with integrated PVC-U pipe connection DN/OD 160, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 110/150/200 and 01 - 010, easy to assemble on site, LxWxH 500x210x603 mm, item no. 33210
Packaging unit
6
