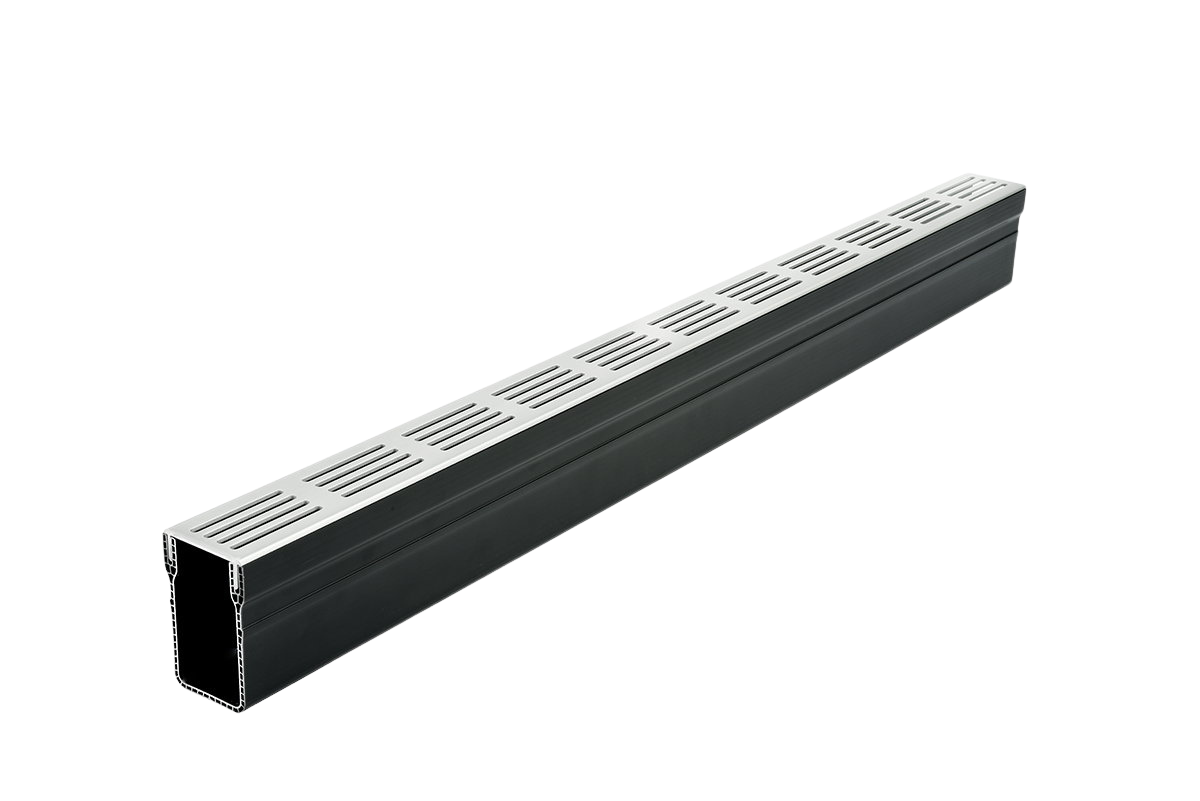

E-TEC
Slimline threshold drainage channel for domestic, commercial and landscaping projects
Features and Benefits of E-TEC
E-TEC is our threshold channel offering, designed primarily to meet the drainage requirements of domestic applications. Common application areas for these modern slimline channels include private homes, patios, door entrances, courtyard areas, gardens and swimming pools. E-TEC channels are tested to load class A15, making them suitable for pedestrian areas.
-
Light to transport and simple to install
-
Sleek and modern geometric design
-
Three different grating finishes (black aluminium, grey aluminium and stainless steel) provide versatility for designers
-
Corner and t-junction connections to create angles
-
All finishes are available in 1.0m length and depths of 100mm and 60mm
-
Sealed with a peel-off film for added protection
-
1.2m lengths are available in our black and grey aluminium finishes, allowing for neat alignment with the common 600mm x 600mm UK paving slab
Channel System Components
A comprehensive range of accessories allows for versatile designs that are functional and aesthetic.
- Closed end cap
- Channel Connector
- End Cap with outlet DN 50
- Channel Connector with Outlet DN 75
- T-Junction
- Corner Unit
The HAURATON Product Finder
Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
