Article No. 47234

RECYFIX PRO 200, class C 250

Type 115 with longitudinal ductile iron grating SW 9 mm, KTL-coated, locked, 1,0 m

Delivery time on request

Questions?

Our experienced planning team will be happy to help you.

Get in touch

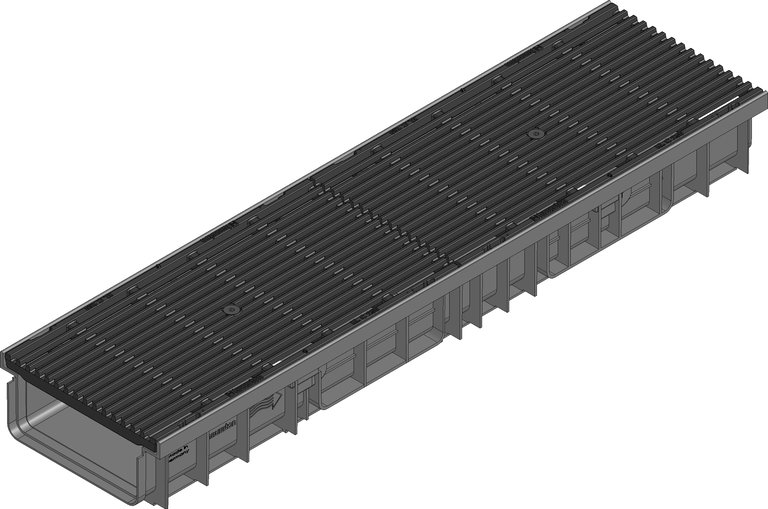

Product image

Technical drawing

Drawing (CAD)

Drawing

Top view

Data Sheet

Technical information and metrics

Article No.
47234
Length
1000 mm
Width
262 mm
Height
115 mm
Weight
21.63 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
951.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 channel type 115 with longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. C 250, lenght 1 m, locked
Product description
RECYFIX PRO 200 type 115 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75/110, with longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, KTL-coated, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, CE-compliant, L/W/H 1000x262x115 mm, item no. 47234
Packaging unit
40

Declaration of Performance

Tender Texts

Installation example

Concrete class A 15 - C 250

Cemented floor class A 15 - C 250

Asphalt class A 15 - B 125

Pavement class A 15 - B 125

Concrete class A 15 - C 250

Asphalt class C 250

Pavement class C 250

Asphalt class A 15 - B 125

Pavement class A 15 - C 250

Asphalt class C 250

Concrete class C 250

Installation instructions
