Article No. 11268
FASERFIX KS 150, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, locked, KTL-coated, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

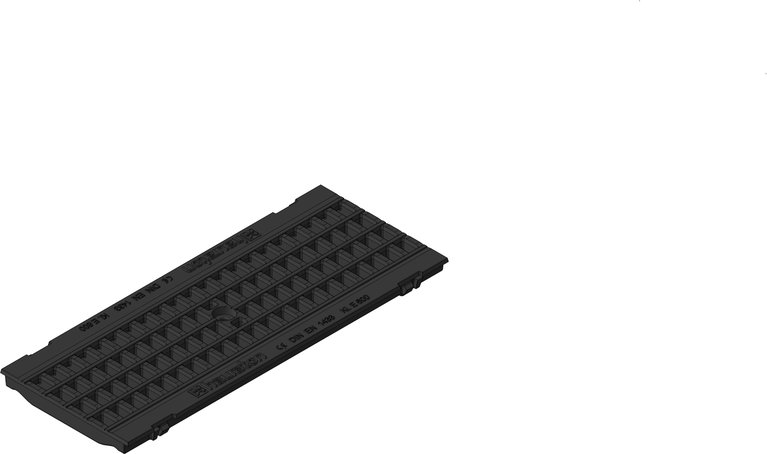

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11268
Length
500 mm
Width
199 mm
Height
33 mm
Weight
6.84 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
622.0 cm²/m
Nominal size
150
Inlet opening
25
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating, KTL-coated, class E 600, KS 150, 0,5 m
Product description
KS 150 - ductile iron mesh grating, KTL-coated, loading capacity from A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, slot size 15x25 mm, L. 500 mm, Art.-No. 11268
Packaging unit
154
Declaration of Performance
