Article No. 12369
FASERFIX KS 200, class D 400
Ductile iron longitudinal grating SW 9 mm, galvanised, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

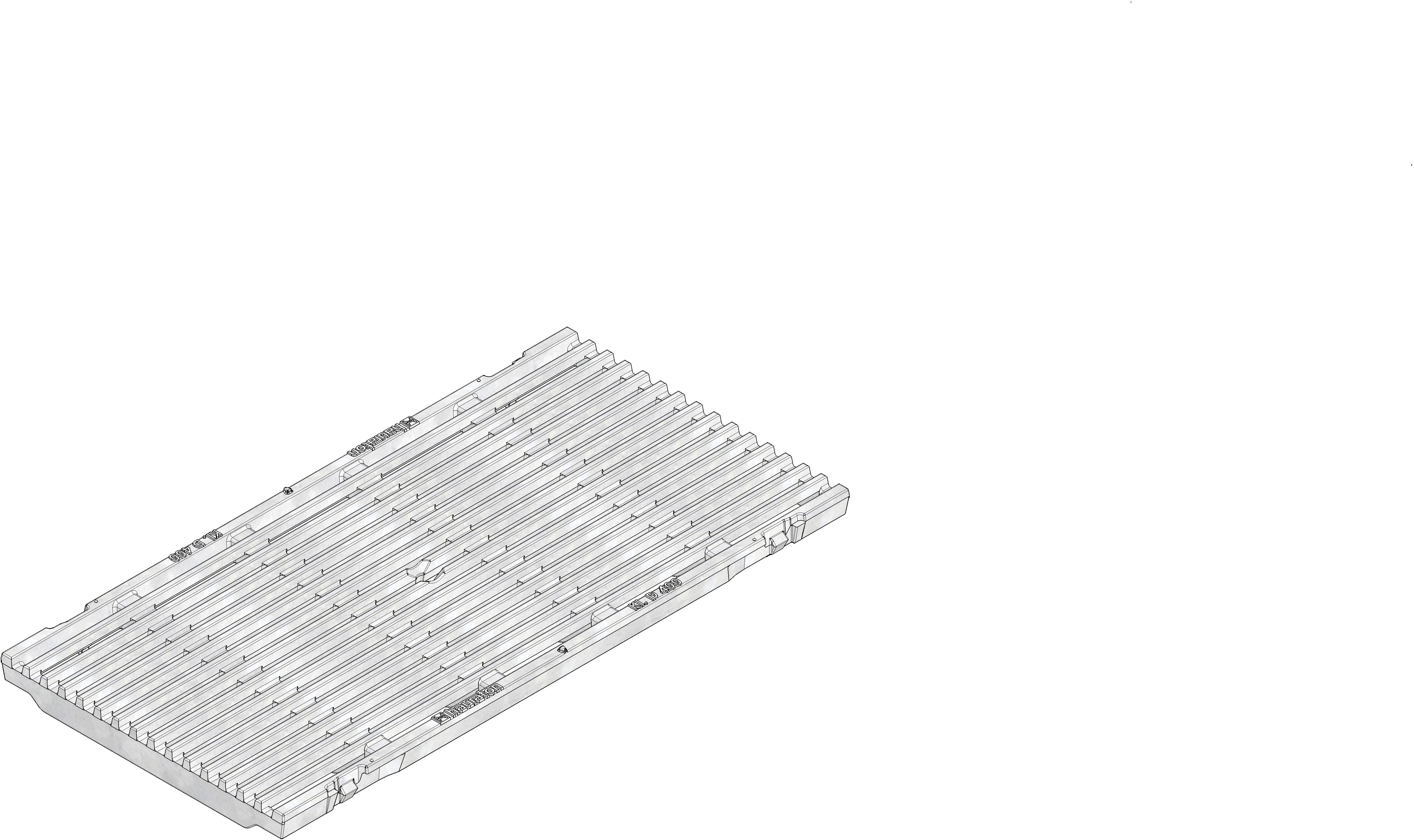

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
12369
Length
500 mm
Width
249 mm
Height
39 mm
Weight
9.43 kg
Material
Ductile iron GJS 500-7 galvanised
Intake cross-section
951.0 cm²/m
Nominal size
200
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal ductile iron grating, bar distance 9 mm, cl. D 400, galvanised, KS 200, 0,5 m
Product description
FASERFIX KS 200 - longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, galvanised, with horizontal thrust resistance, loading capacity from A 15 to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 12369
Packaging unit
108
Declaration of Performance
