Article No. 10221
RECYFIX PRO 100, class C 250
Type 01 with FIBRETEC design slotted grating SW 110/9 mm, black, locked, slip resistance class R11, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

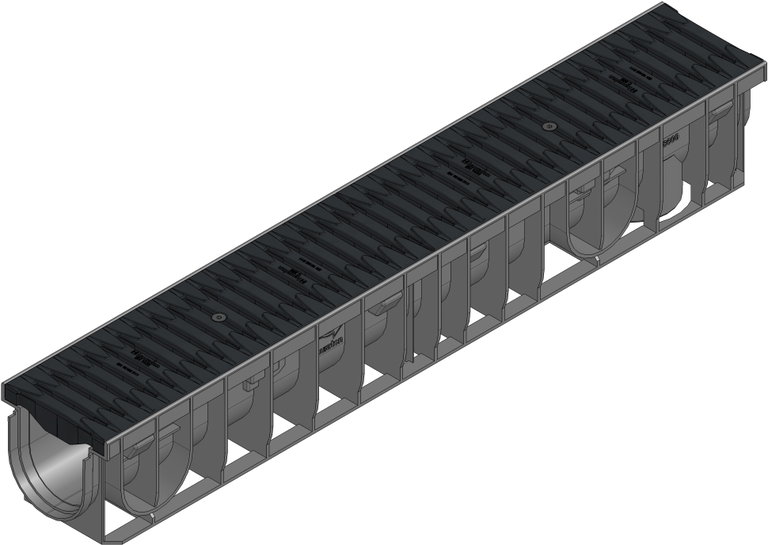

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10221
Length
1000 mm
Width
160 mm
Height
150 mm
Weight
4.35 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 channel type 01 with FIBRETEC design slotted grating, SW 9 mm, black, cl. C 250, slip resistance class R11, locked, 1 m
Product description
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with FIBRETEC design slotted grating SW 9 mm, black, slip resistance class R11, made of reinforced polyamide, with horizontal thrust resistance and locking, loading capacity from A 15 up to C 250 according to EN 1433, L/W/H 1000x160x150 mm, item no. 10221
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
