Article No. 41277
RECYFIX STANDARD 100, class A 15
Type 0105 with perforated grating "Elegance", locked, 0,5 m
Questions?
Technical drawing
Drawing (CAD)
Drawing

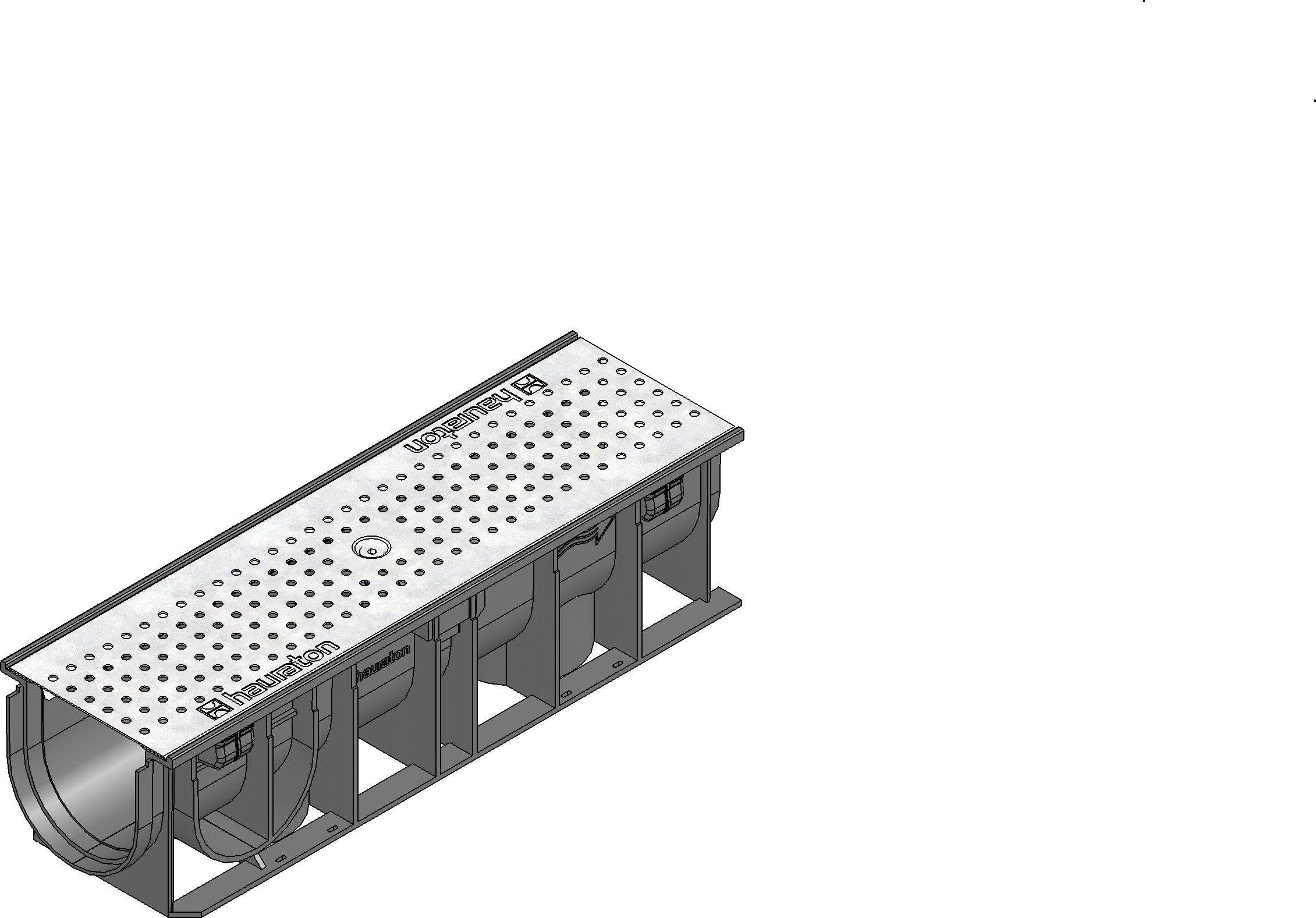

Product image
Data Sheet
Technical information and metrics
Article No.
41277
Length
500 mm
Width
150 mm
Height
134 mm
Weight
1.96 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 channel type 01 with perforated grating "Elegance", galvanised steel, cl. A 15, locked
Product description
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with perforated grating, galvanised, Ø 6 mm, with locking device, loading capacity A 15, L/W/H 500x150x134 mm, item no. 41277
Packaging unit
98
