Article No. 32346
SERVICE CHANNEL FASERFIX SUPER 300 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, KTL-coated, with plastic caps, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

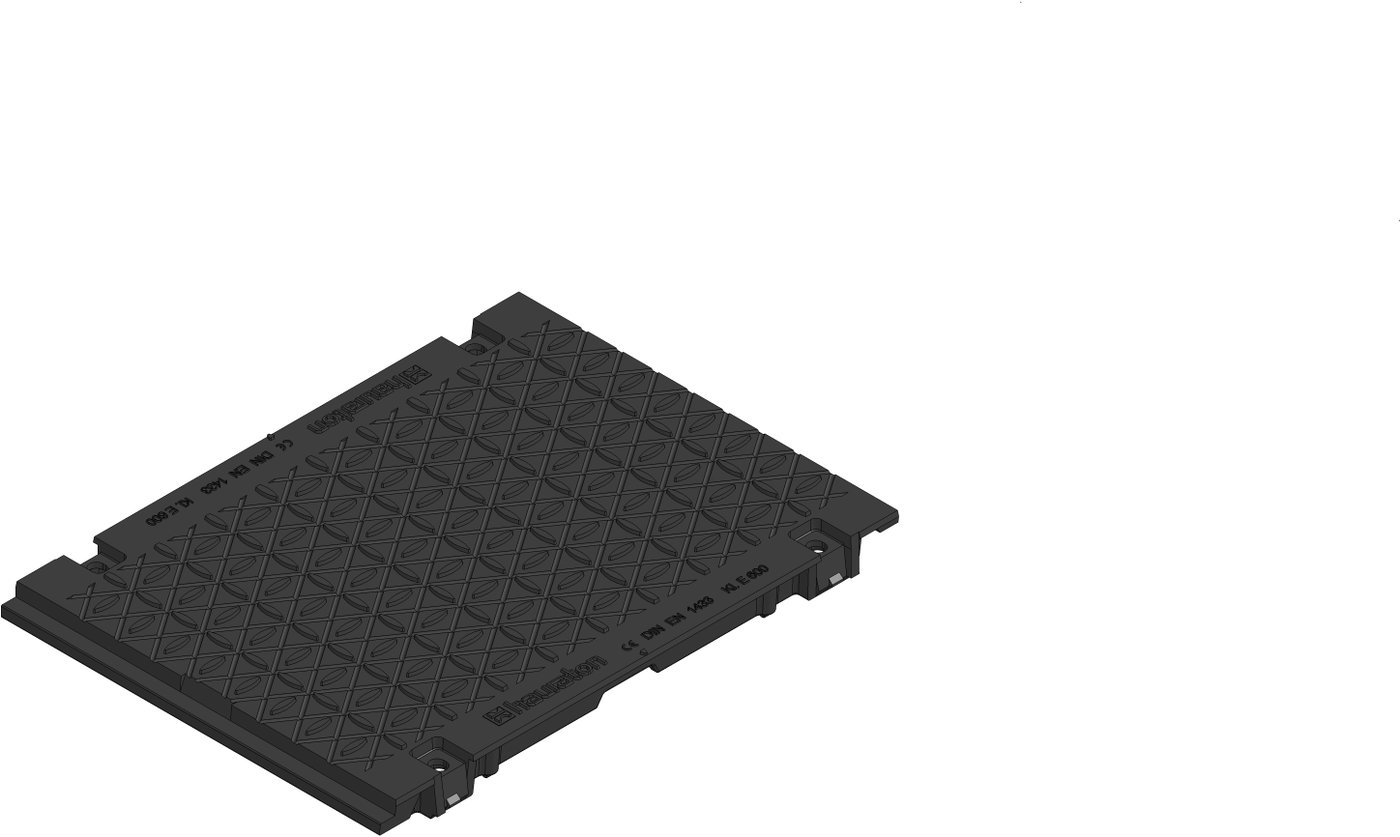

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32346
Length
500 mm
Width
377 mm
Height
58 mm
Weight
21.50 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, with UPVC caps black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 300, 0,5 m
Product description
SERVICE CHANNEL FASERFIX SUPER 300 - ductile iron grating, closed, KTL coated, loading capacity from A 15 up to E 600, according to EN 1433, CE-conform, 4-times locking, with plastic pins, length 500 mm, Item No. 32346
Packaging unit
50
Declaration of Performance
