Article No. 10543
FASERFIX KS 150, class D 400
Mesh grating MW 30/10 mm, galvanised, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

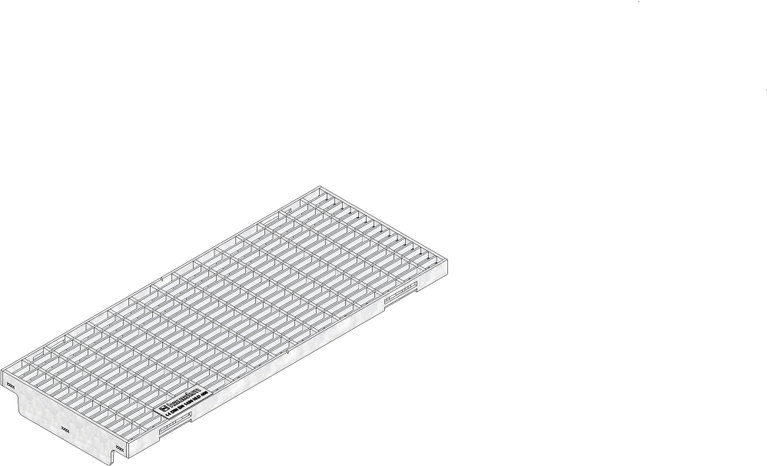

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10543
Length
500 mm
Width
199 mm
Height
46 mm
Weight
5.27 kg
Material
hot-dip galvanised steel
Intake cross-section
1390.0 cm²/m
Nominal size
150
Inlet opening
10.0
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Sales text
Mesh grating MW 30/10 mm, galvanised, cl. D 400, FASERFIX KS 150, 0,5 m
Product description
FASERFIX KS 150 - mesh grating, galvanised, MW 30/10 mm, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 10543
Packaging unit
-
Declaration of Performance
