Article No. 14366
FASERFIX KS 300, class D 400
Ductile iron grating 2x SW 141/9 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

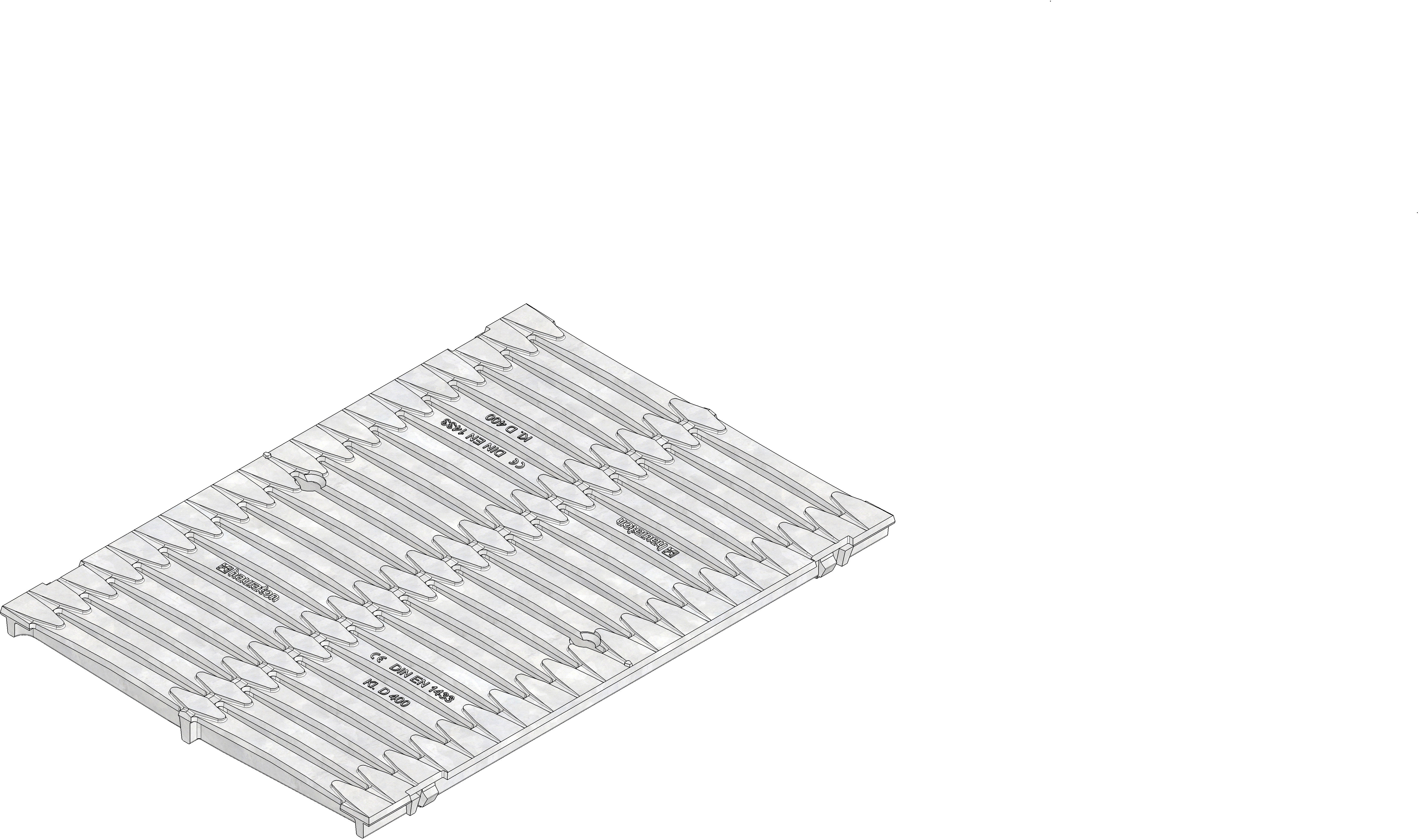

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
14366
Length
500 mm
Width
349 mm
Height
46 mm
Einlegetiefe
20 mm
Weight
15.11 kg
Material
Ductile iron GJS 500-7 galvanised
Intake cross-section
960.0 cm²/m
Nominal size
300
Inlet opening
9
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
G-TEC Ductile iron grating 2x SW 141/9 mm, galvanised, cl. D 400, FASERFIX KS 300, 0.5 m
Product description
FASERFIX KS 300 - G-TEC Ductile iron grating 2x SW 141/9 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 14366
Packaging unit
50
Declaration of Performance
