Article No. 41486

RECYFIX PLUS 100, class C 250

Type 010 with ductile iron grating SW 80/14 mm, black, stainless steel, locked, 0.5 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

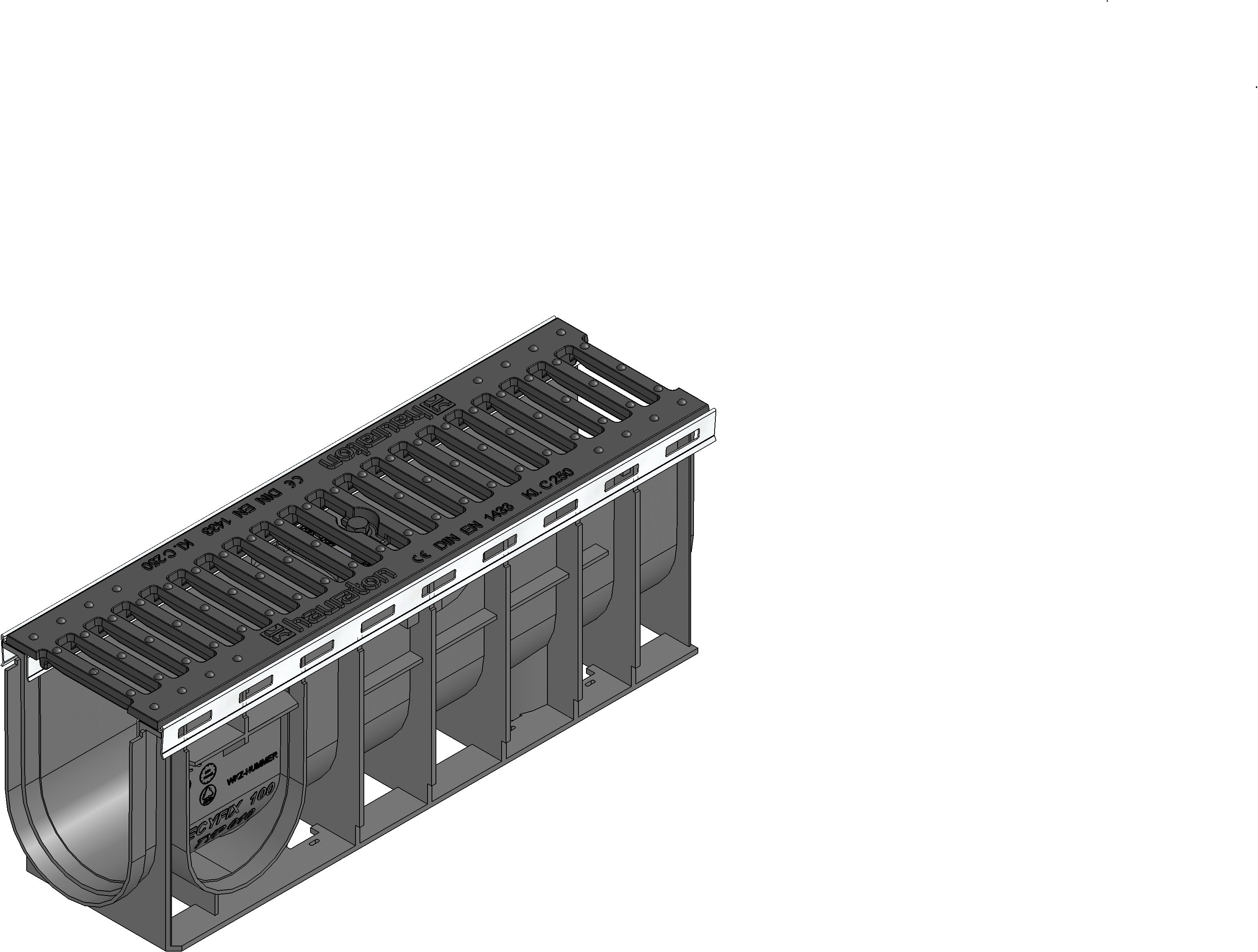

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
41486
Length
500 mm
Width
147 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
5.25 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301, Steel black galvanised
Intake cross-section
464.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PLUS 100 Channel type 010 with edge frames made of stainless steel and ductile iron grating SW 80/14 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX PLUS 100 type 010 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with ductile iron grating SW 80/14 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x147x186 mm, item no. 41486
Packaging unit
84
