Article No. 40735

RECYFIX PLUS 200, class B 125

Type 100 with mesh grating MS 30/30 mm, galvanised, locked, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

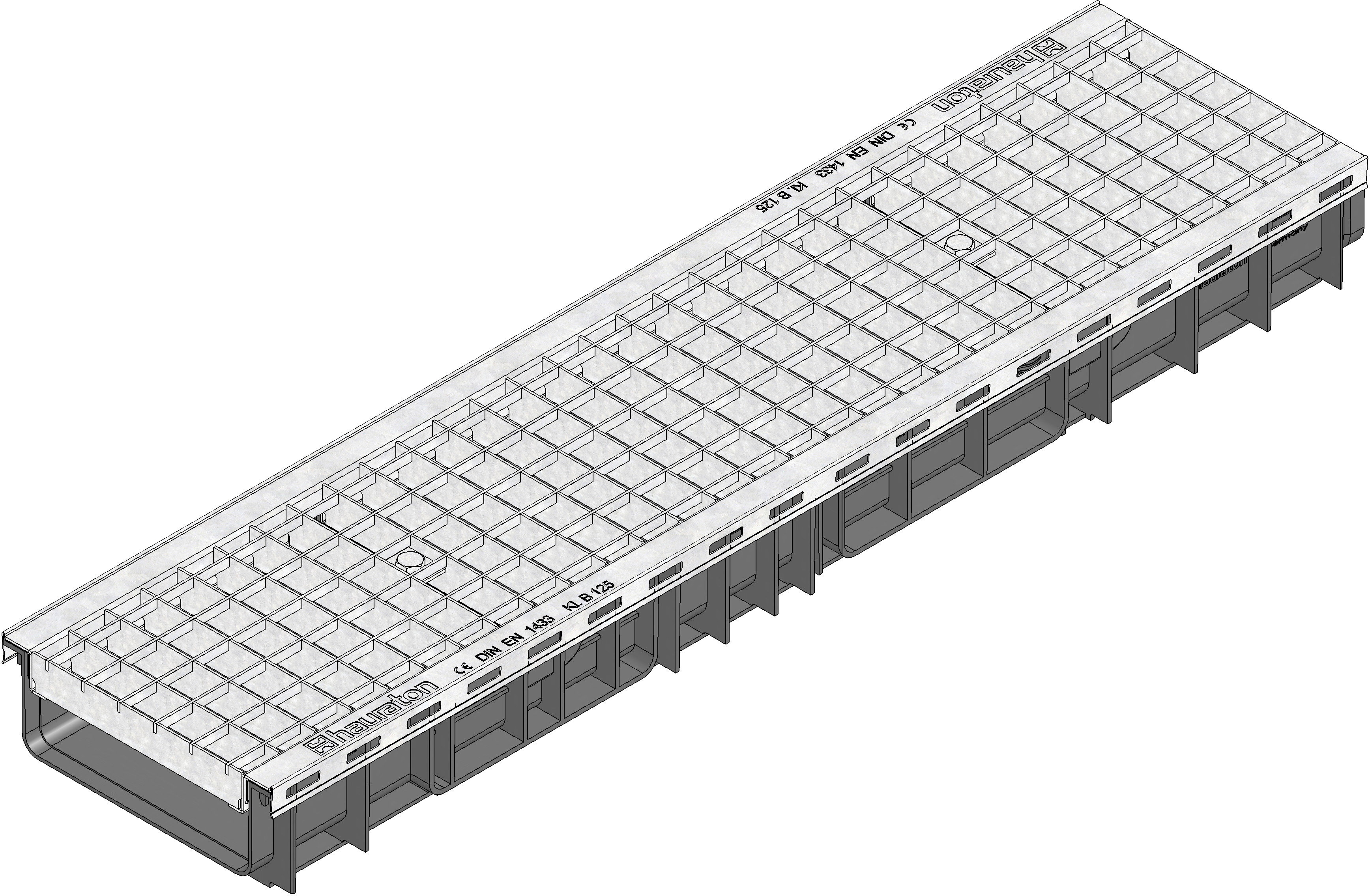

Product image

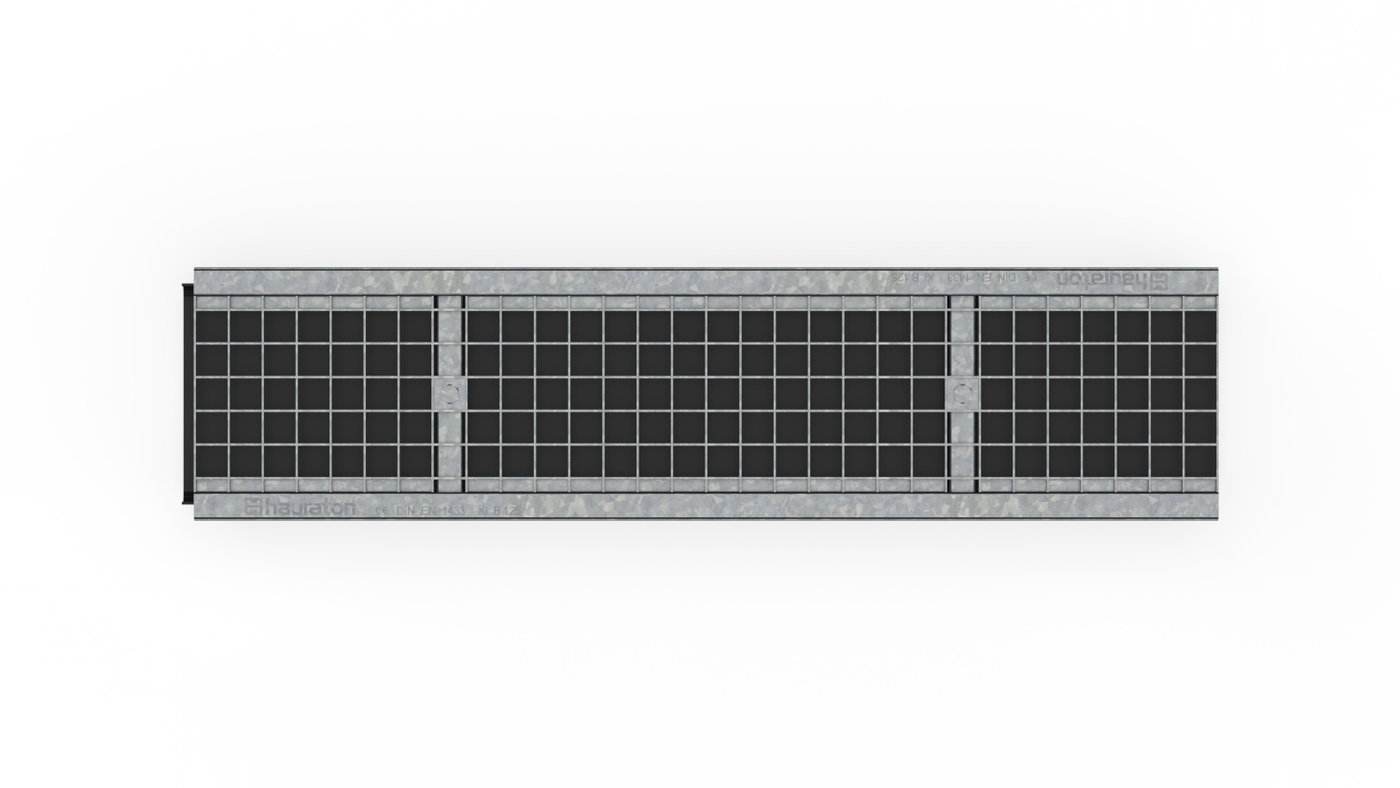

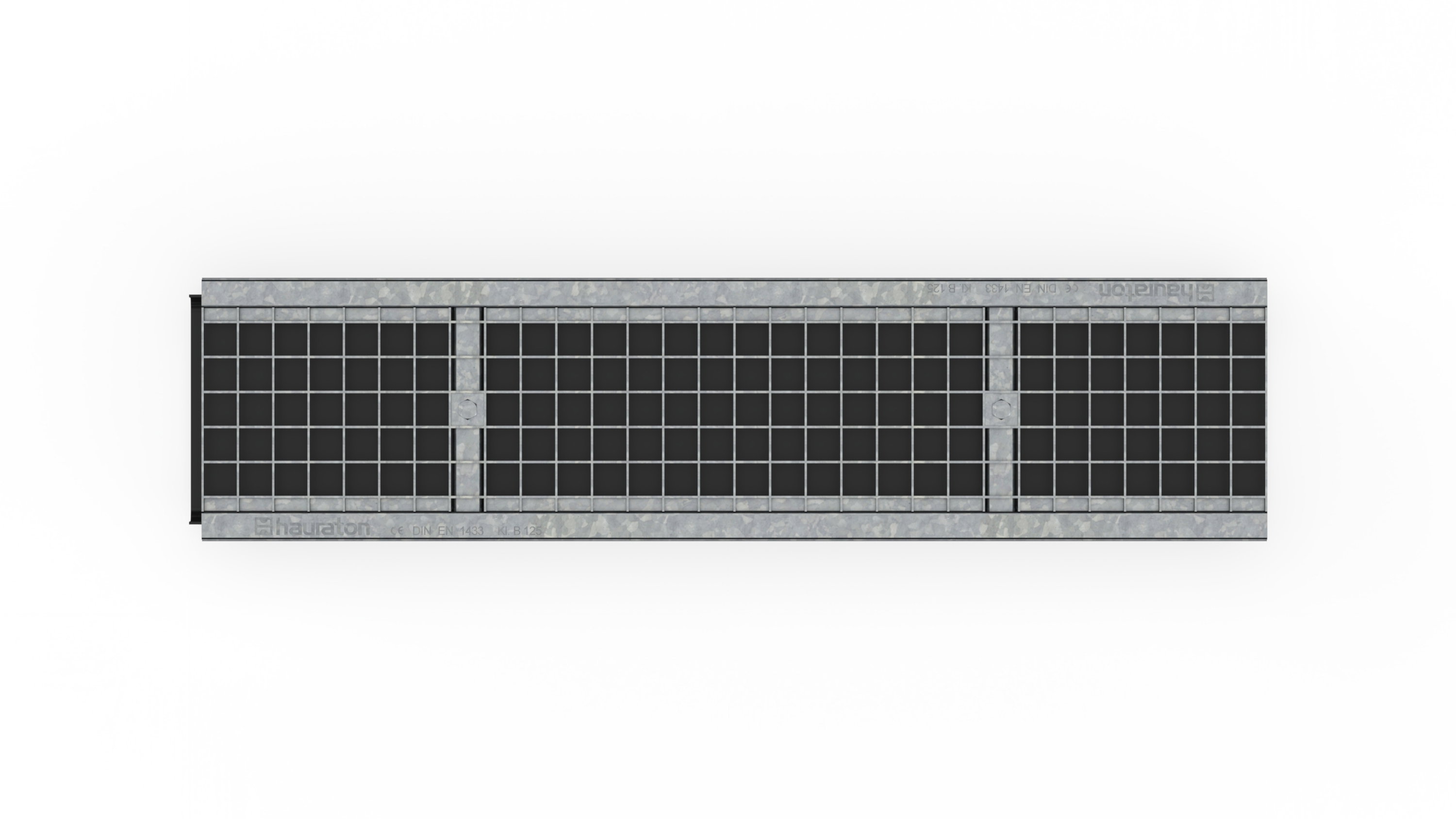

Top view

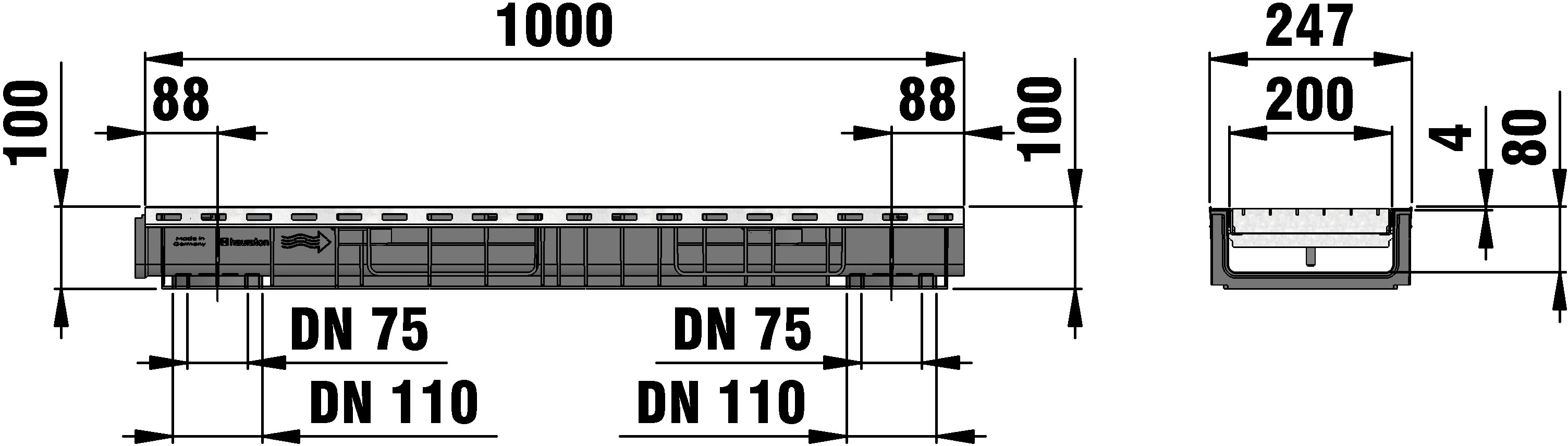

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
40735
Width
247 mm
Height
100
Einlegetiefe
2 mm
Weight
9.29 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, strip galvanized steel
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
152 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 100 with edge frames made of galvanised steel and mesh grating MS 30/30 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 200 type 100 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 75/110, with mesh grating MS 30/30 mm, made of galvanised steel, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x247x100 mm, item no. 40735
Packaging unit
36
