Article No. 47272

RECYFIX PRO 200, class D 400

Type 010 with ductile iron design grating METROPOLIS, black, KTL-coated, locked, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

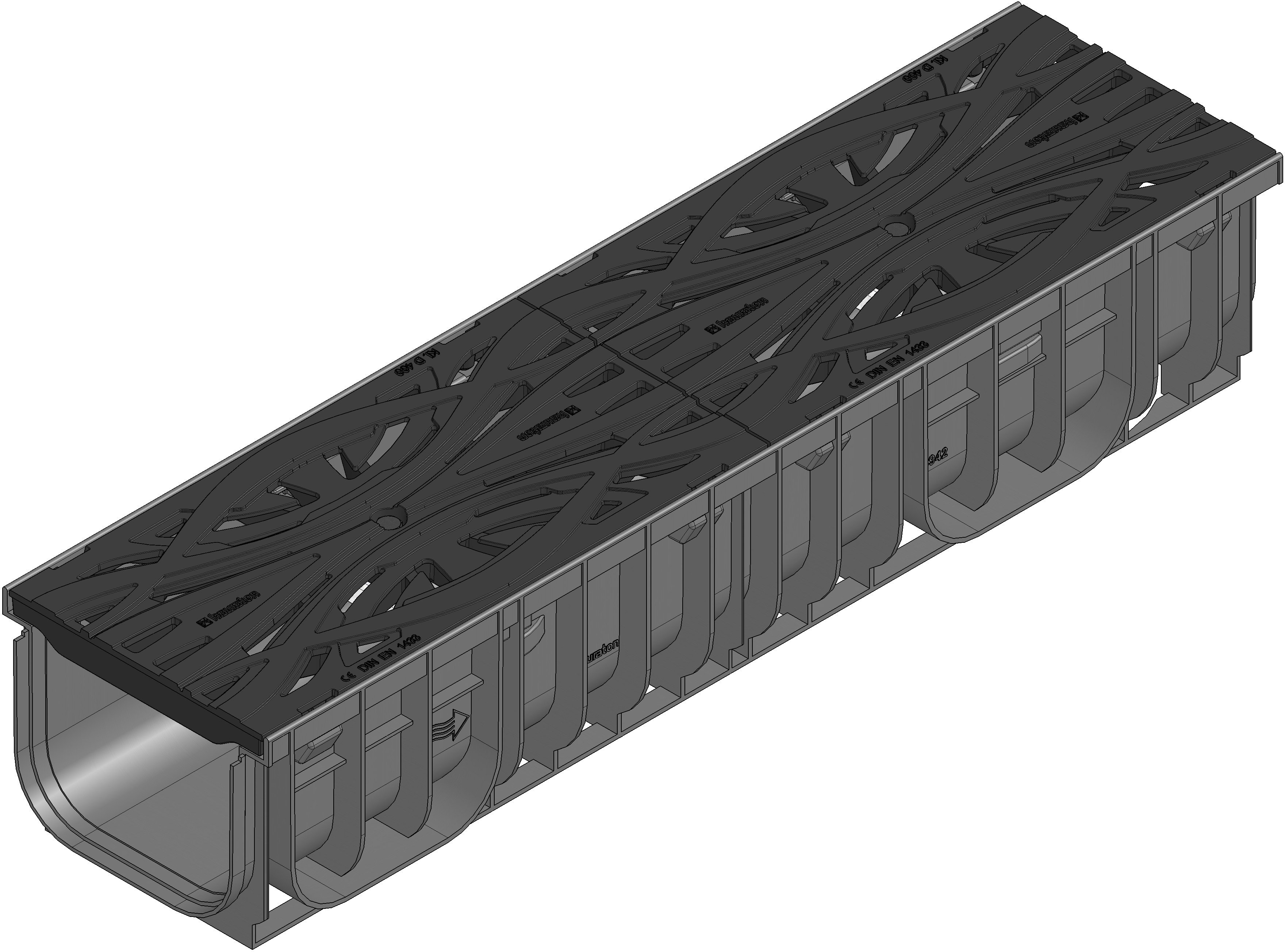

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
47272
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
25.12 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled polypropylene
Intake cross-section
279.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with ductile iron grating Metropolis, KTL-coated, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110/160, with ductile iron grating Metropolis, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x262x200 mm, item no. 47272
Packaging unit
20
