Article No. 41270
RECYFIX STANDARD 100, class A 15
Type 01 with perforated grating "Elegance", locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

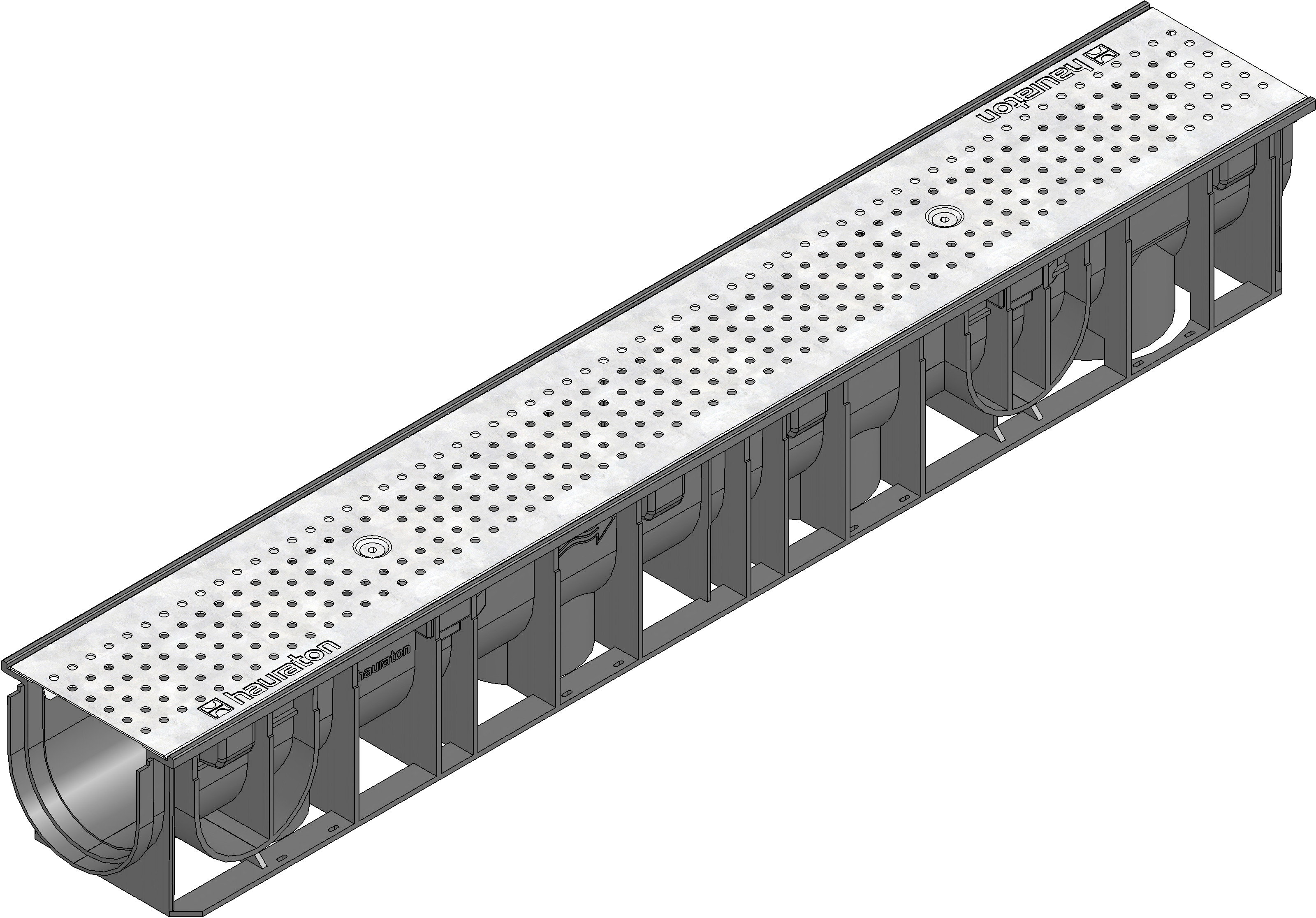

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41270
Length
1000 mm
Width
150 mm
Height
134 mm
Weight
3.92 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 channel type 01 with perforated grating ""Elegance"", galvanised steel, cl. A 15, locked
Product description
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with perforated grating, galvanised, Ø 6 mm, with locking device, loading class A 15, L/W/H 1000x150x134 mm, item no. 41270
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
