Article No. 40248
RECYFIX STANDARD 100, class C 250
Type 80 with ductile iron grating SW 14 mm, black, locked, 1,0 m*
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

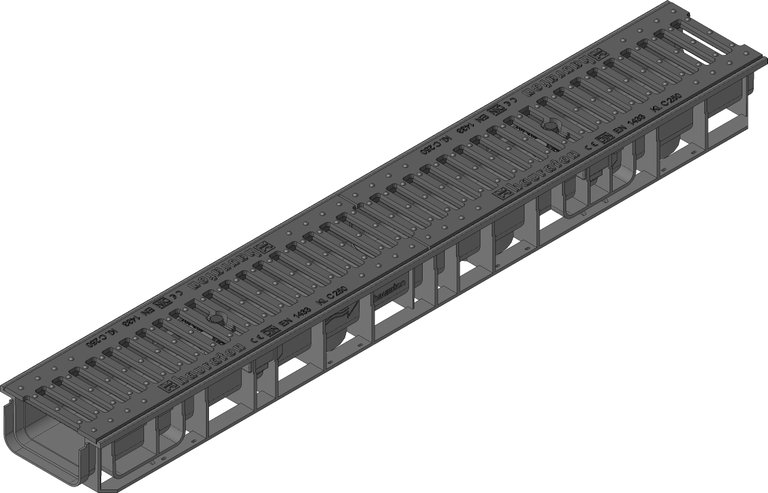

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40248
Length
1000 mm
Width
150 mm
Height
80 mm
Weight
7.69 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
432.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 channel type 80 with ductile iron grating, SW 14 mm, black, class C 250 with locking device
Product description
RECYFIX STANDARD 100 type 80 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 14 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x150x80 mm, item no. 40248
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
