Article No. 32864

RECYFIX STANDARD 300, class B 125

Type 01 with ductile iron grating, SW 2 x 127/18 mm, black, locked, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

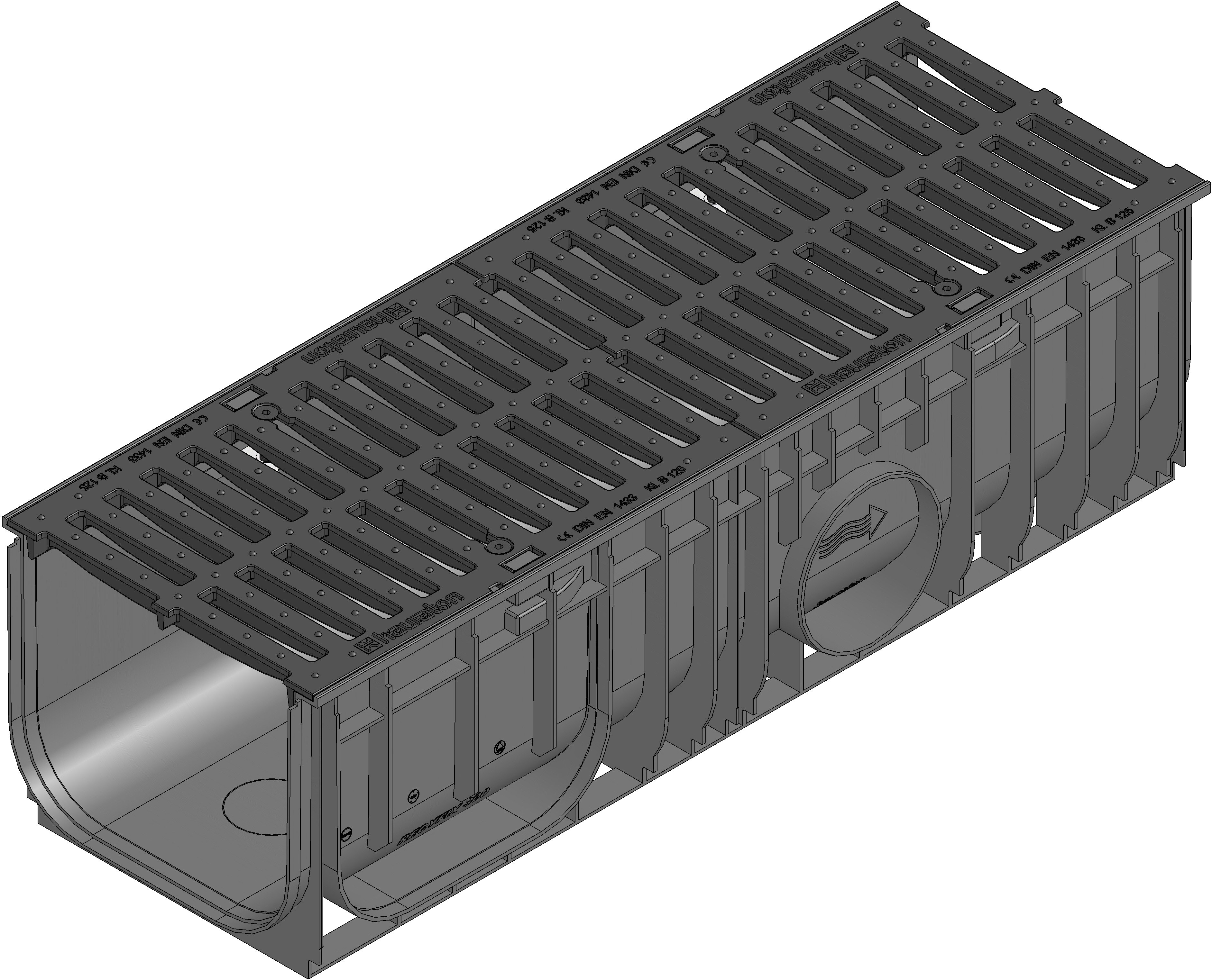

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
32864
Width
352 mm
Height
292
Weight
22,74 kg
Intake cross-section
1088 cm²/m
Nominal size
300
Internal channel cross-section
725 cm²
Material
PE-HD ,recycled, modified Polypropylene ,Steel black galvanised ,strip galvanized steel
Packaging unit
9
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX STANDARD 300 Typ 01 - channel made of modified PP according EN 1422, with lateral (DN 160) and vertical (DN 160/200) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x127/18 mm, black, loading capacity from A 15 to B 125 according to EN 1433, with horizontal thrust resistance and locking, L/W/H 1000x352x292 mm, item no. 32864
Sales text
RECYFIX STANDARD 300 channel type 01 with ductile iron grating SW 2x127/18 mm, black, cl. B 125, locked, 1 m
