Article No. 32041
SERVICE CHANNELS FASERFIX KS 300 made of fibre-reinforced concrete with 20 mm angle housing, class C 250
Ductile iron grating, closed, KTL-coated, black, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

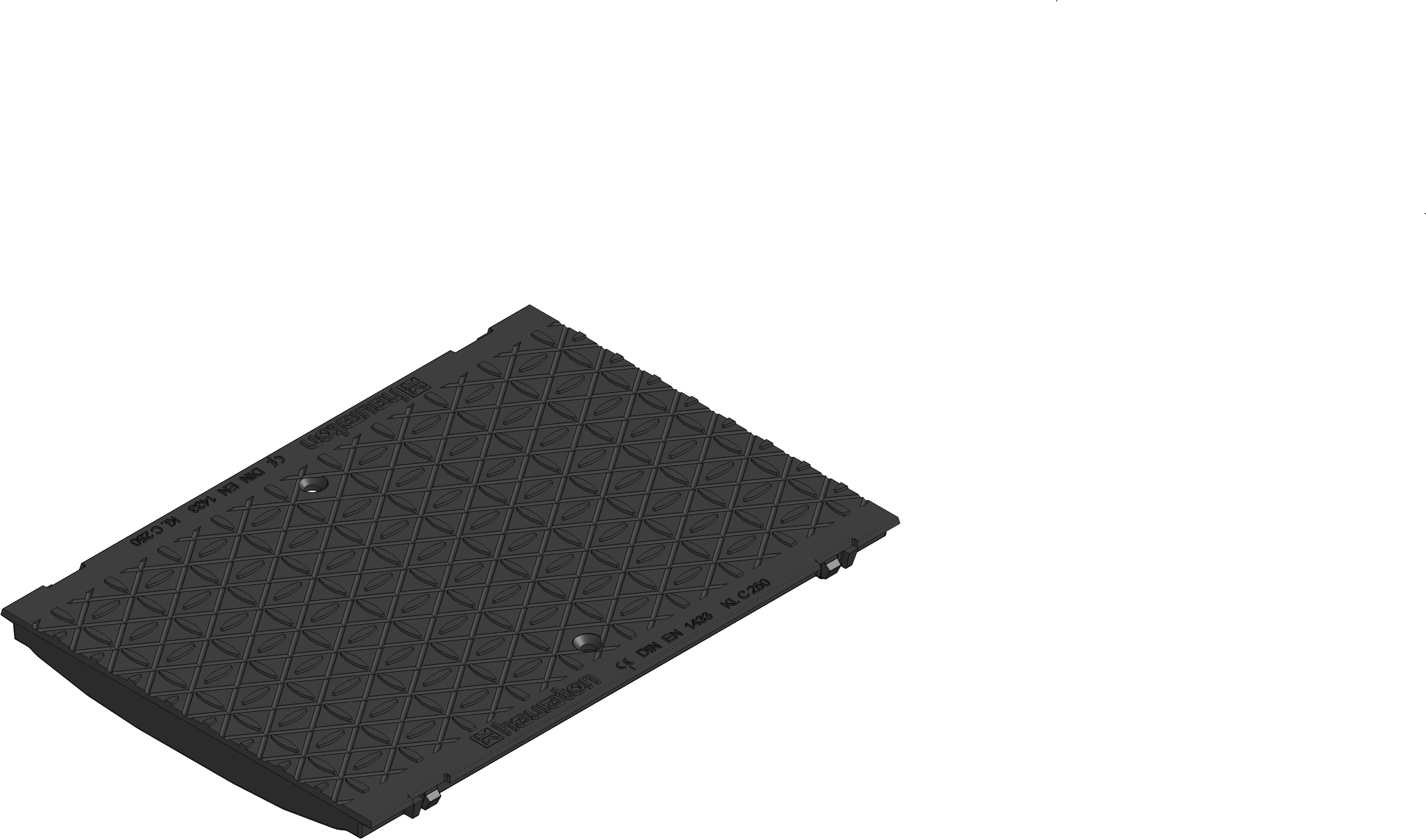

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32041
Length
500 mm
Width
349 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
11.80 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, black, cl. C 250, MEDIA CHANNEL FASERFIX KS 300, 0.5 m
Product description
MEDIA CHANNEL FASERFIX KS 300 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32041
Packaging unit
80
Declaration of Performance
