Article No. 48654
sump unit
for NW 100, with integrated edge frames and silt bucket made of recycled PP, with longitudinal ductile iron grating, bar distance 9 mm, galvanised, class D 400, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

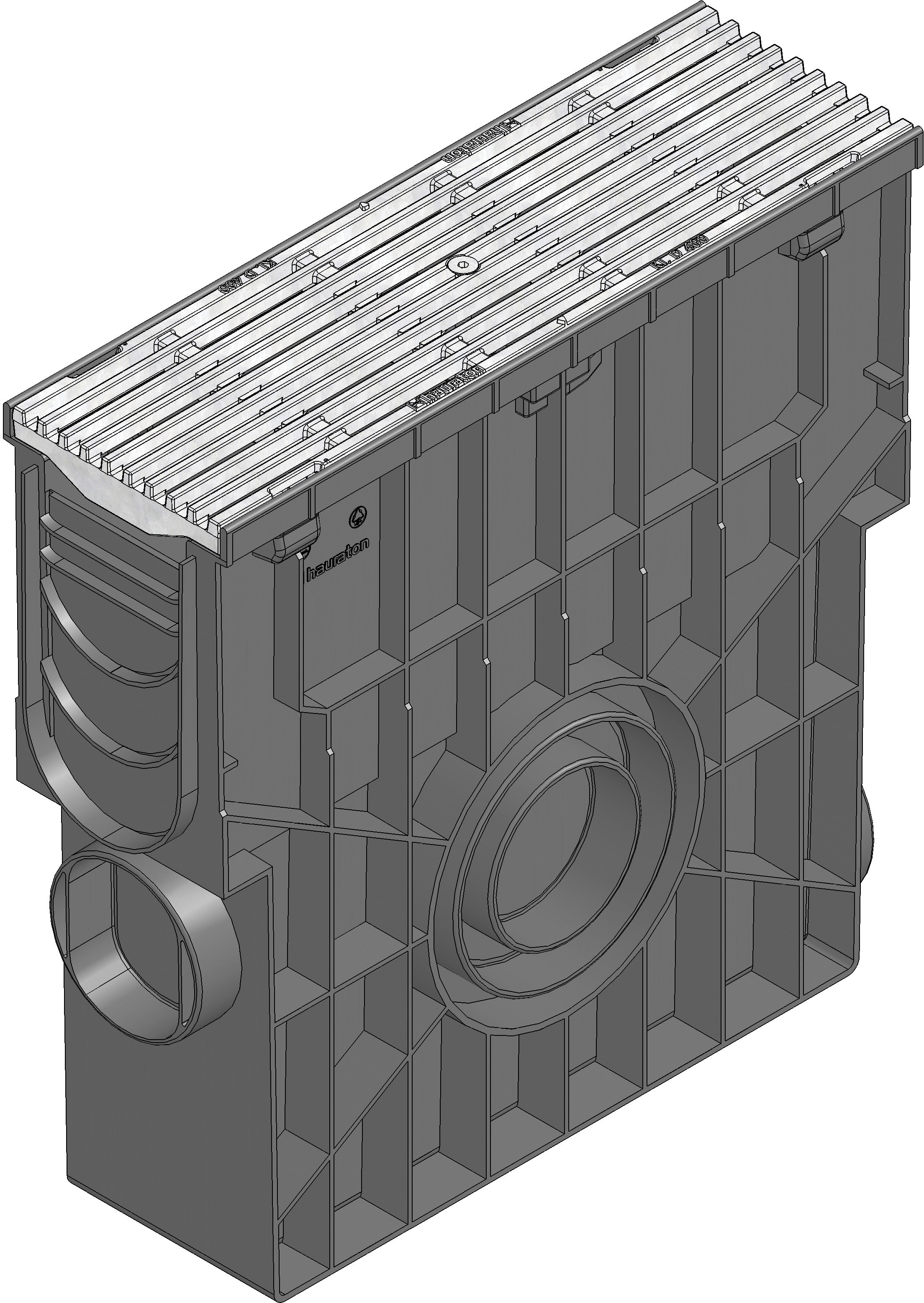

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
48654
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
8.10 kg
Material
Ductile iron GJS 500-7 galvanised, Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
528.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with longitudinal ductile iron grating, bar distance 9 mm, galvanised, cl. D 400, locked, with silt bucket made of recycled PP, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Sump unit made of recycled polypropylene, according to EN 1433, with integrated edge frames, 4-sided preformed pipe connection element (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, with longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x160x504 mm, item no. 48654
Packaging unit
28
