Article No. 33511
Trash boxes
for NW 200 + 300, with galvanised steel frame, with ductile iron grating SW 3 x 140/20 mm, black, class F 900, 0,51 m
Questions?

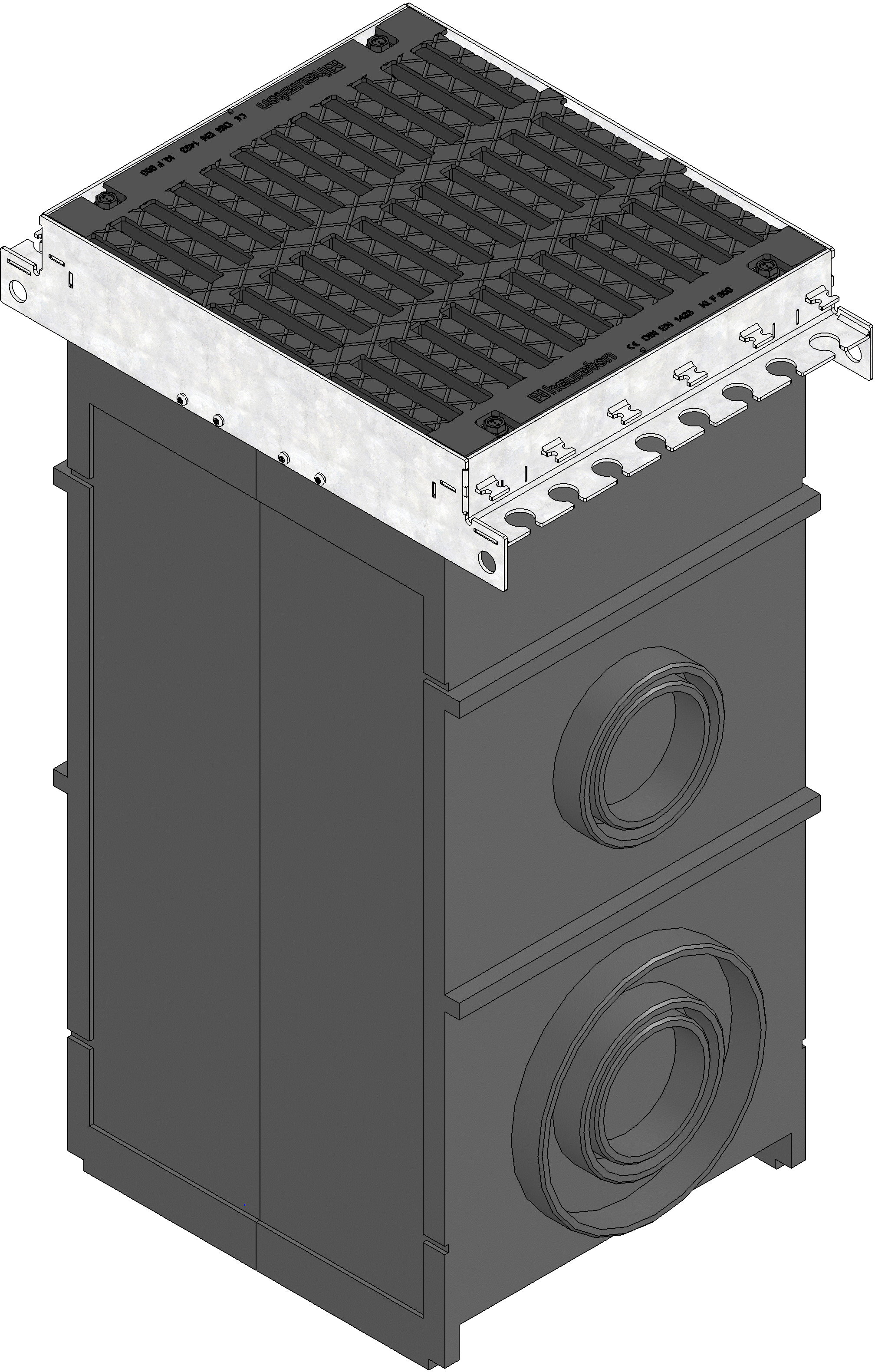

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33511
Weight
101.84 kg
Nominal size
200, 300
Regulations
EN 1433, DIN 19580
Sales text
Trash box with galvanised steel frame, with ductile iron grating SW 3x 140/20 mm, black, cl. F 900, RECYFIX MONOTEC ULTRA 200 + 300
Product description
RECYFIX MONOTEC ULTRA 200 + 300 -trash box according to to EN 1433, CE compliant, with galvanised steel frame, with ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3 x 140/20 mm, black, loading capacity from A 15 - F 900, fourfold locking, optional connection on two sides with variable PVC-U sockets DN/OD 160, DN/OD 200, DN/OD 315, for connection of RECYFIX MONOTEC ULTRA 200 + 300-channels, L/W/H 510x590x1116 mm, item no. 33511
Packaging unit
-
