Article No. 40057
sump unit
for NW 200, with edge frames made of stainless steel and silt bucket made of recycled PP, with ductile iron grating SW 180/6 mm, black, class C 250, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

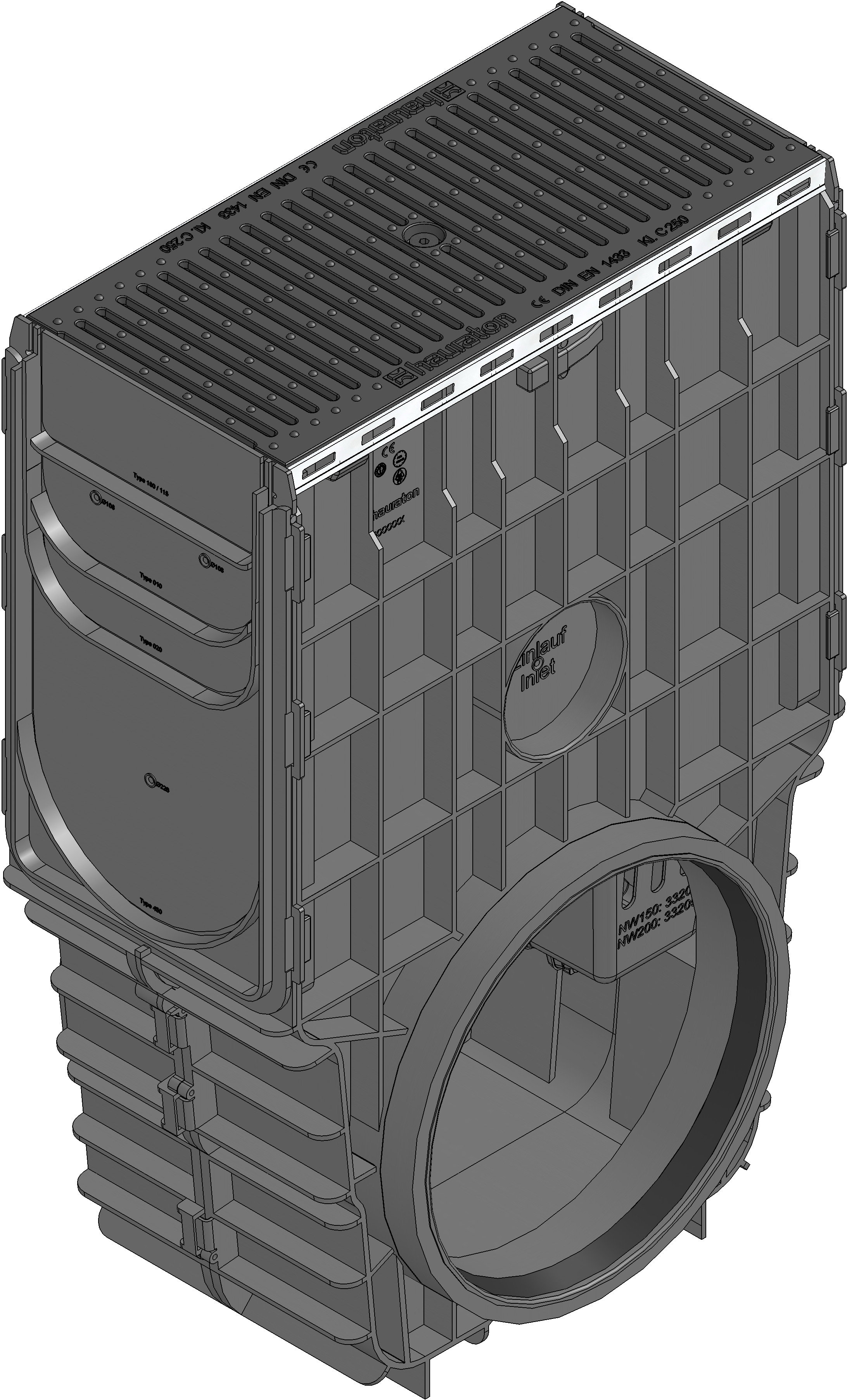

Product image
Technical drawing
Drawing (CAD)

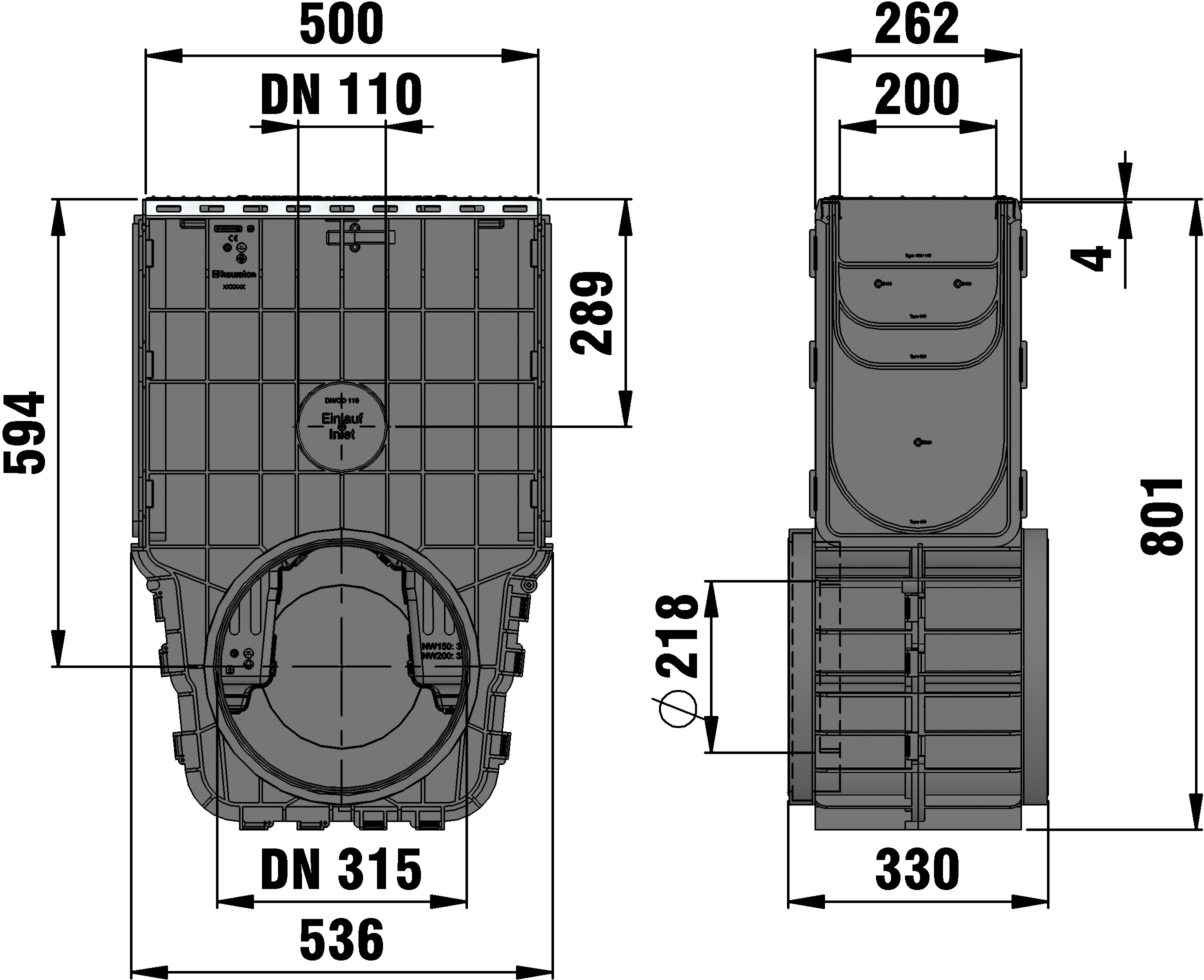

Drawing

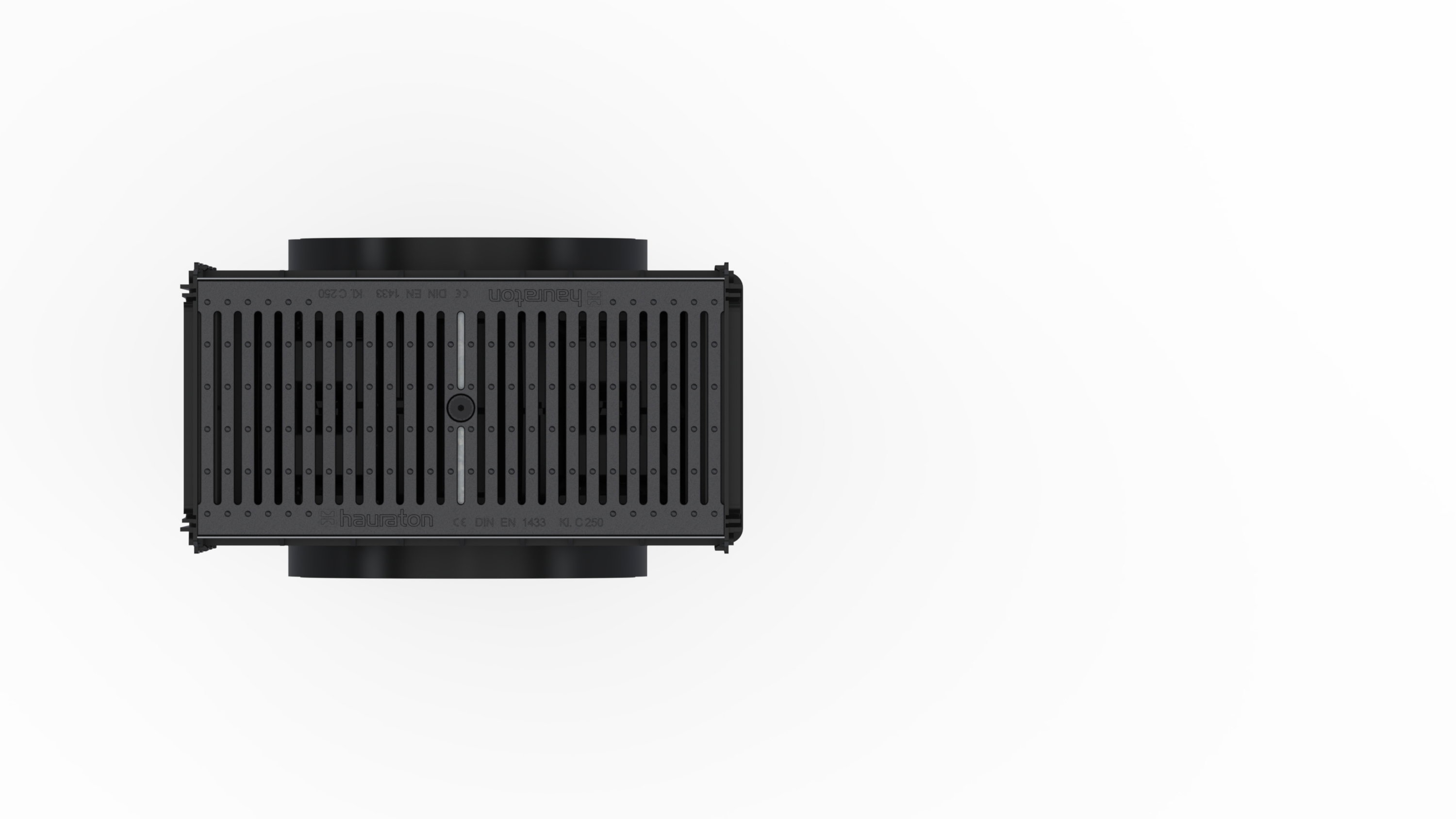

Top view
Technical information and metrics
Article No.
40057
Length
500 mm
Width
262 mm
Height
801 mm
Einlegetiefe
6 mm
Weight
16.06 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
557.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with ductile iron grating SW 180/6 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS 200, 0.5 m
Product description
RECYFIX PLUS 200 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 200, with ductile iron grating SW 180/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x801 mm, item no. 40057
Packaging unit
4
