Article No. 40049
sump unit
for NW 200, with edge frames made of stainless steel and silt bucket made of recycled PP, with mesh grating MS 30/30 mm, cl. B 125, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

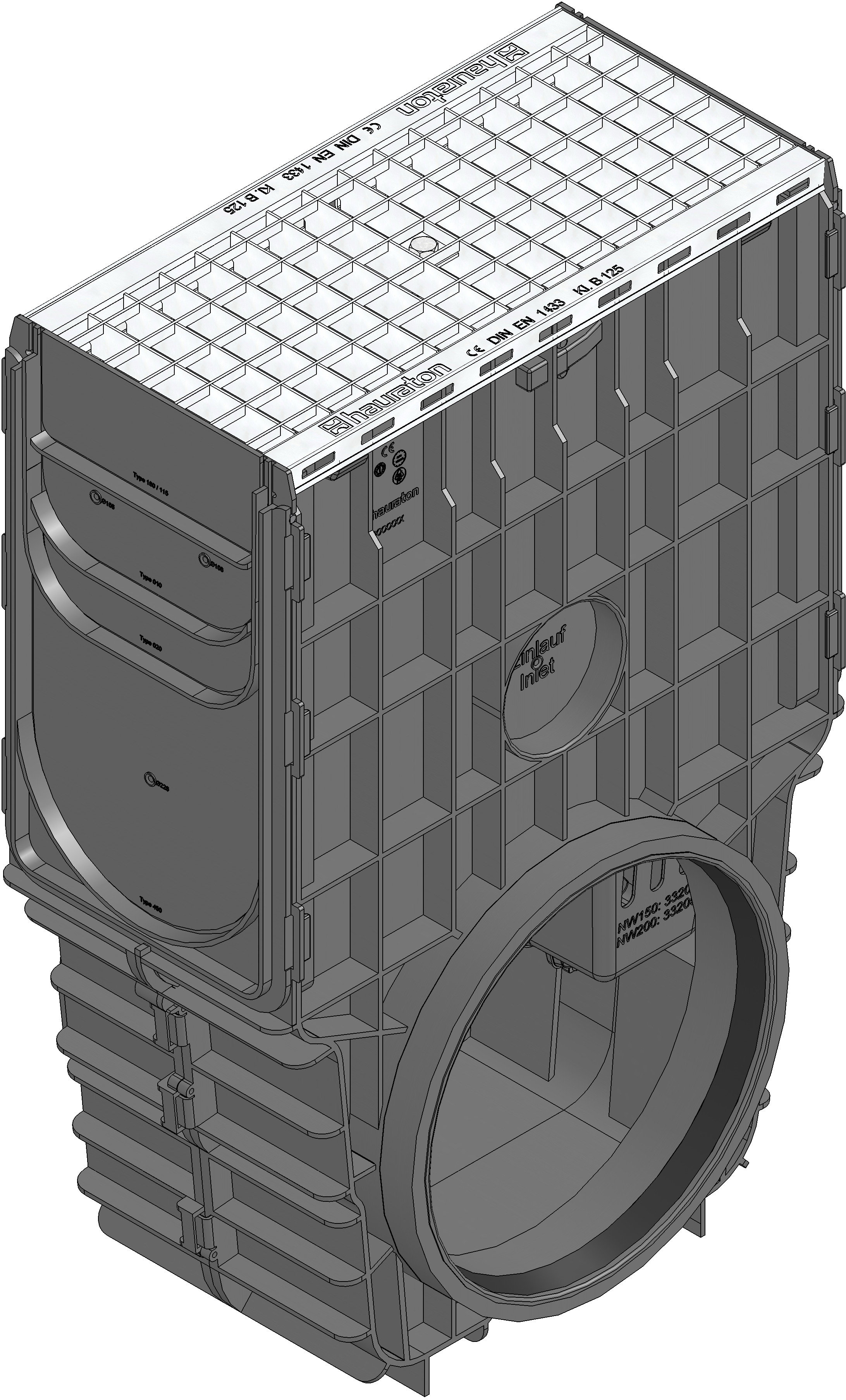

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40049
Length
500 mm
Width
262 mm
Height
801 mm
Einlegetiefe
2 mm
Weight
12.37 kg
Material
Galvanised steel, recycled polypropylene, Stainless steel 1.4301
Intake cross-section
1640.0 cm²/m
Nominal size
200
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with mesh grating MS 30/30 mm, stainless steel, cl. B 125, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS 200, 0.5 m
Product description
RECYFIX PLUS 200 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 200, with mesh grating MS 30/30 mm, stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x262x801 mm, item no. 40049
Packaging unit
4
