Article No. 40078
sump unit
for NW 300, for type 01, with silt bucket made of recycled PP, with ductile iron grating 2x SW 127/18 mm, black, class B 125, locked , 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

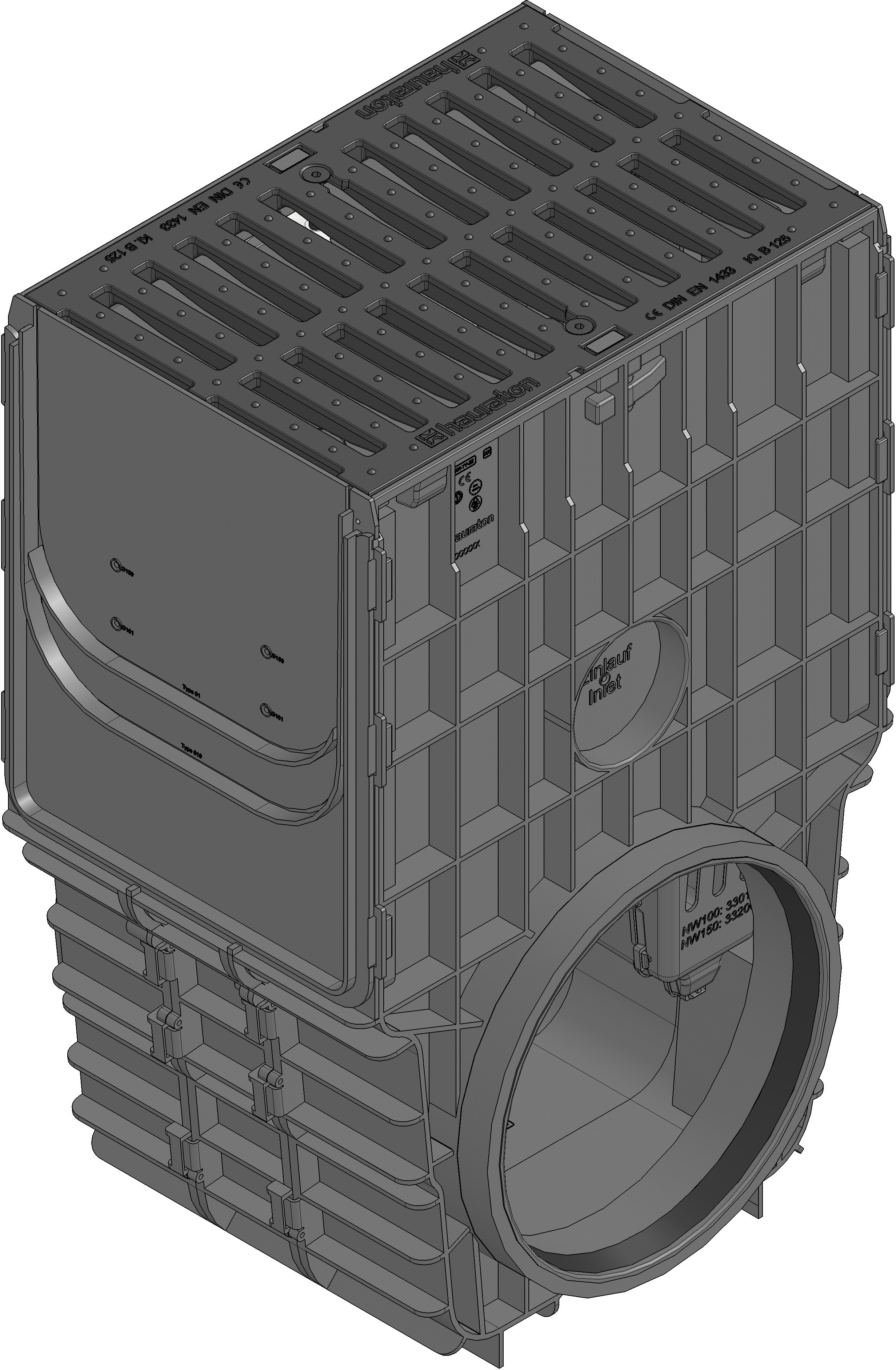

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40078
Length
500 mm
Width
362 mm
Height
800 mm
Einlegetiefe
6 mm
Weight
19.64 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1088.0 cm²/m
Nominal size
300
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron grating 2x SW 127/18 mm, black, cl. B 125, locked, suitable for type 01 only, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 300 type 01, 0.5 m
Product description
RECYFIX STANDARD 300 type 01 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel type RECYFIX STANDARD 300 type 01 only, with ductile iron grating 2x SW 127/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x362x800 mm, item no. 40078
Packaging unit
4
