Article No. 24460
sump unit
for NW 100 - 300, 2-part, with edge frames made of KTL-coated ductile iron, with GUGI-ductile iron mesh grating MS 15/25 mm, black, class E 600, 0.51 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

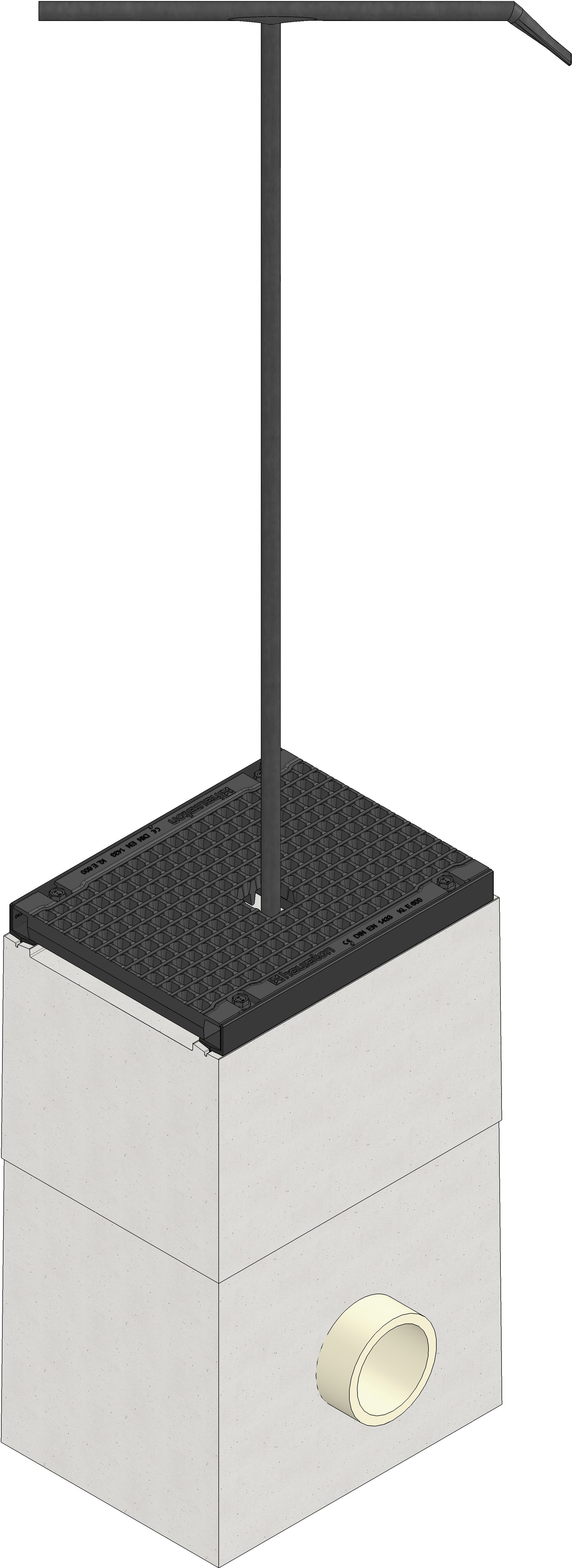

Product image

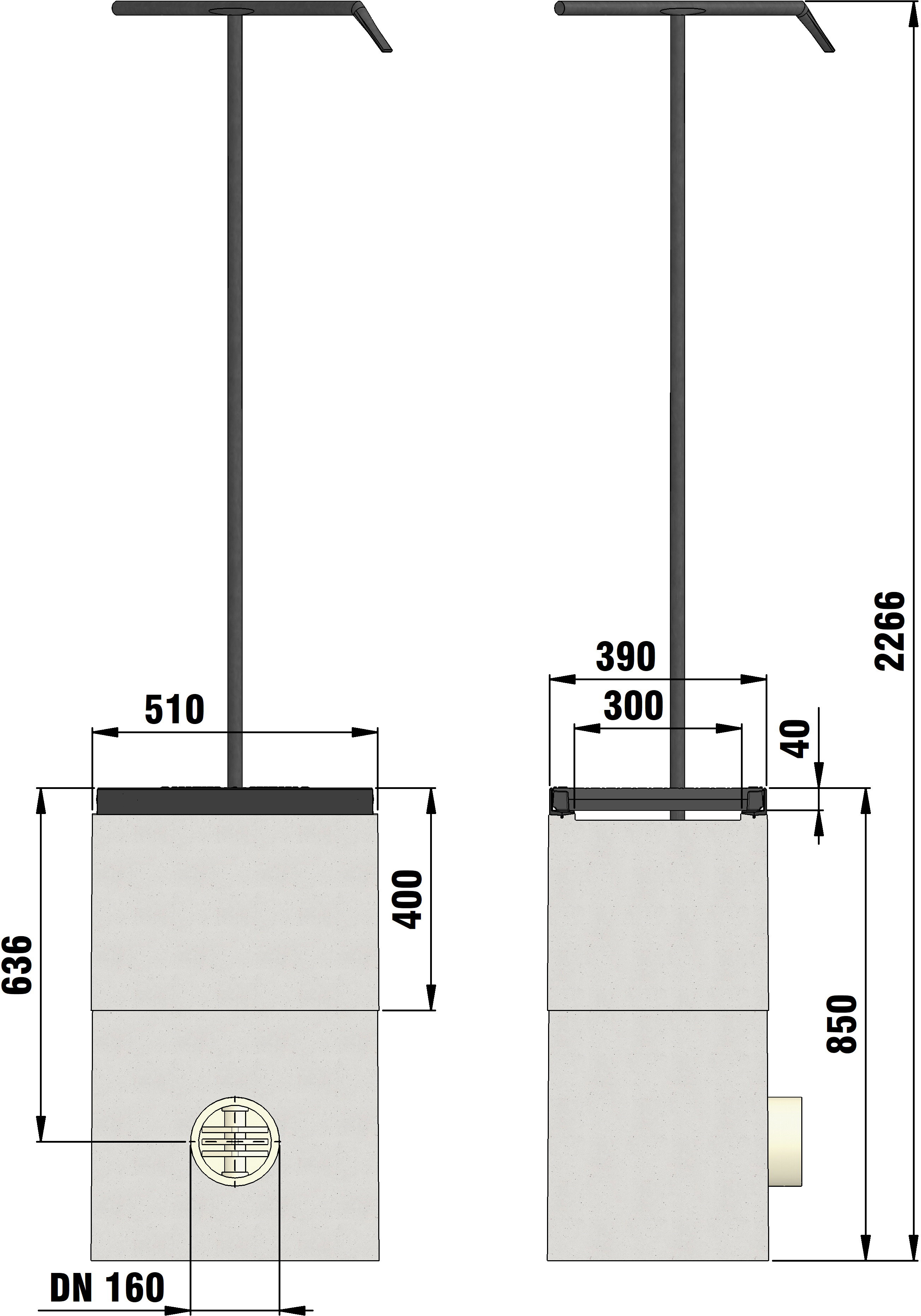

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24460
Length
510 mm
Width
390 mm
Height
850 mm
Weight
204.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with shutter valve, with underground hydrant spanner and modified GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX KS 100-300, FASERFIX SUPER 100-300 and DRAINFIX C
Product description
Sump unit, based on FASERFIX SUPER 300-Sump unit, 2-part, made of fibre-reinforced concrete, with edge frame made of KTL-coated ductile iron and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 4-fold locking, with a modified GUGI-ductile iron mesh grating MS 15/25 mm, black, for turning off a shut-off valve without need to open the grating, including underground hydrant spanner and mechanical shutter valve, load class A 15 - E 600 according to EN 1433, CE compliant, sealed at connection point one-sided connection possibility DN/OD 160, suitable for both-sided connection of all channel types FASERFIX KS 100 - KS 300, FASERFIX SUPER 100 - 300 and DRAINFIX CLEAN FSU 300, LxWxH 510x390x850 mm, item no. 24460
Packaging unit
6
